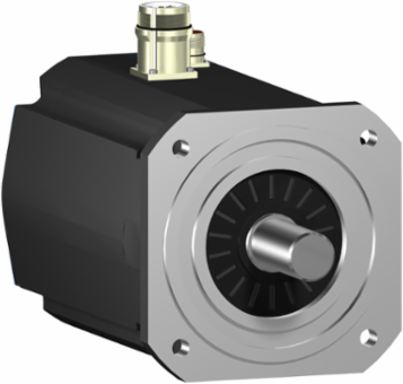

Schneider Electric SH32052P11A1100 Servo Motor 64.9 Nm, 3 Phase, 500-3800 RPM, IP65
- MPN: SH32052P11A1100
- PPN: SCH-SH32052P11A1100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for high performance and precision, this servo motor from Schneider Electric offers a robust torque rating of 64.9 Nm, making it an ideal choice for demanding automation and motion control applications. With its three-phase design, it operates efficiently within a speed range of 500 to 3800 RPM, ensuring versatile functionality across various tasks. Additionally, the IP65 rating provides reliable protection against dust and water, enhancing durability and performance in challenging environments. This motor stands out as a reliable solution for those seeking to optimize their automation systems with advanced motion control capabilities.
Documentation & Downloads
Specifications
Additional
- Torque
- 64.9 N.m (Continuous Stall Torque), 220 N.m (Peak Stall Torque)
- Maximum Current Irms
- 96.8 A
- Nominal Output Power
- 3230 W (115 V single phase), 5860 W (230 V single phase), 7980 W (400 V three phase), 7140 W (480 V three phase)
- Nominal Speed
- 500 rpm (115 V single phase), 1000 rpm (230 V single phase), 2000 rpm (400 V three phase), 2400 rpm (480 V three phase)
- Phase
- Three phase
- Shaft Length
- 80 mm (3.15 in)
- Shaft End
- Parallel key
- Speed Feedback Resolution
- 128 periods
- Motor Flange Size
- 205 mm (8.07 in)
- Length
- 405 mm (15.94 in)
- Centring Collar Depth
- 4 mm (0.16 in)
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Net Weight
- 50 kg (110.23 lb)
- Rotor Inertia
- 129 kg.cm²
- Stator Inductance
- 8.2 mH
- Back Emf Constant
- 161 V/krpm (20 °C)
- Maximum Axial Force
- 740 N
- IP Rating
- IP65 motor and shaft bushing (EN/IEC 60034-5)
- Environmental Disclosure
- ENVPEP111049EN
- Device Short Name
- SH3.....P
- Range Compatibility
- PacDrive 3
- Holding Brake
- Without
- Circularity Profile
- N/A
Rated Supply Voltage115-480 V
Continuous Power7900 W
Nominal Torque61.6 N.m (115 V single phase), 56 N.m (230 V single phase), 38.1 N.m (400 V three phase), 28.4 N.m (480 V three phase)
Speed Range500-3800 rpm
Shaft Diameter38 mm (1.50 in)
Key Width10 mm (0.39 in)
Encoder TypeAbsolute single turn SinCos Hiperface
Mounting SupportInternational standard flange
Electrical ConnectionRotatable right angled connector
Centring Collar Diameter180 mm (7.09 in)
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes215 mm (8.46 in)
Number Of Motor Poles5
Stator Resistance0.3 Ohm
Torque Constant2.58 N.m/A (120 °C)
Maximum Radial Force4200 N (1000 rpm), 3330 N (2000 rpm), 2910 N (3000 rpm)
Cooling TypeNatural convection
RoHS ComplianceYes, RoHS Exemption, EU RoHS Directive compliant, China RoHS Regulation X, RoHS Mercury Free, PVC Free
Sustainable Offer StatusGreen Premium product
Product Or Component TypeServo motor
Warranty18 months
WEEE ComplianceMust be disposed on EU markets per waste collection requirements
Reach RegulationContains SVHC above threshold
