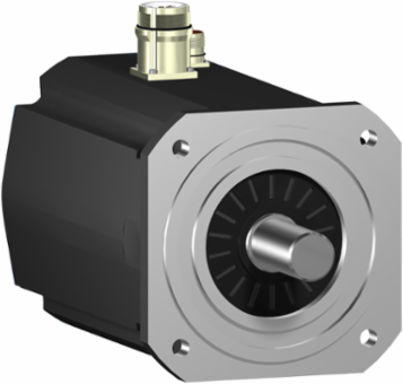

Schneider Electric SH32052P12A1100 Lexium Servo Motor 64.9 Nm, 3-Phase, 3.8k RPM, IP65, 50 kg
- MPN: SH32052P12A1100
- PPN: SCH-SH32052P12A1100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Lexium Servo Motor by Schneider Electric is engineered for high-performance motion control in various automation applications. With a robust torque rating of 64.9 Nm and capable of reaching speeds of 3.8k RPM, this three-phase motor ensures precise and efficient operation. Its IP65 rating provides excellent protection against dust and water, making it suitable for demanding environments. Weighing in at 50 kg, this servo motor is an ideal choice for applications that require reliability and superior performance in motion control.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Physical Attributes
- Key Width
- 10 mm
- Shaft Length
- 80 mm
Motor Flange Size205 mm
Complementary Attributes
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Maximum Ambient Air Temperature For Operation
- 60.0 °C
- Maximum Current Irms
- 96.8 A
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Line Rated Current17.8 A
Maximum Axial Force Fa740 N
Maximum Mechanical Speed3800 rpm
Maximum Radial Force Fr4200 N 1000 rpm3330 N 2000 rpm2910 N 3000 rpm
Important Information Attributes
- Electrical Connection
- straight connector, rotatable right angled connector
- Nominal Speed
- 2000 rpm, 500 rpm 115 V single phase1000 rpm 230 V single phase, 2000 rpm 400 V three phase2400 rpm 480 V three phase
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Centring Collar Diameter
- 180 mm
- Continuous Power
- 7900 W
- Continuous Stall Torque
- 64.9 N.m 115...480 V three phase
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Encoder Type
- absolute multiturn SinCos Hiperface
- Inertia
- 0.0 kg.cm² of brake129.0 kg.cm² of motor
- Minimum Operational Altitude
- 0.0 m
- Mounting Holes Diameter
- 14 mm
- Network Number Of Phases
- 3
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 220 N.m 115...480 V three phase
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Shaft Diameter
- 38 mm
- Sizing Reference
- SH32052P
- Stator Inductance
- 2.95 mH
- Sustainable Packaging
- No
- Torque Constant
- 2.52 N.m/A 120 °C
- Pep Code
- ENVPEP111049EN
- [Us] Rated Supply Voltage
- 115...480 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501524000
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque61.6 N.m 115 V single phase56 N.m 230 V single phase, 38.1 N.m 400 V three phase28.4 N.m 480 V three phase38.1 N.m full speed51.5 N.m half speed
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes215 mm
Continuous Stall Current25.7 A
Derating Altitude Scale80.0 m
Derating Temperature Scale80.0 °C
Device Short NameSH3
Holding Brakewithout
Maximum Operational Altitude3000.0 m
Motor Figures400.0 V
Mounting Supportinternational standard flange
Number Of Motor Poles5
Peak Nominal Torque220.0 N.m
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia129 kg.cm²
Shaft Endparallel key
Speed Feedback Resolution128 periods
Stator Resistance0.3 Ohm
Temperature Copper Hot130 °C
Type Of Coolingnatural convection
Length Total405 mm
Maximum [In] Rated Current17.8 A
Package Weight(Lbs)54.65 kg
Warranty (In Months)18
Environment Attributes Main
- Ip Degree Of Protection
- IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP111049EN
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP111049EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 3230 W 115 V single phase5860 W 230 V single phase, 7980 W 400 V three phase7140 W 480 V three phase
Output Current 3s Peak96.8 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
