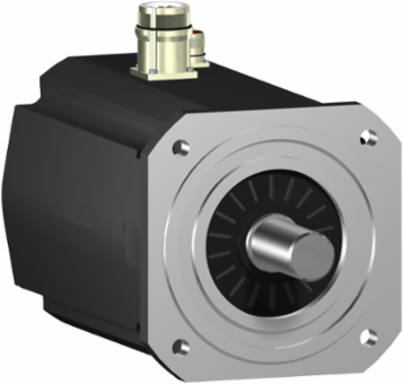

Schneider Electric SH32052P02A1100 Servo Motor 64.9 Nm, 3800 RPM, 3 Phase, IP65
- MPN: SH32052P02A1100
- PPN: SCH-SH32052P02A1100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This servo motor by Schneider Electric is designed to meet the rigorous demands of motion control applications, delivering an impressive torque of 64.9 Nm at a high speed of 3800 RPM. Engineered for three-phase operation, it ensures reliable and consistent performance across various automation and control tasks. The robust IP65 rating provides excellent protection against dust and moisture, making it suitable for use in challenging environments. With its combination of power and durability, this servo motor is an essential component for enhancing the efficiency and precision of advanced automated systems.
Documentation & Downloads
Specifications
Additional
- Torque
- 64.9 N.m
- Rated Supply Voltage
- 115...480 V
- Continuous Stall Torque
- 64.9 N.m 115...480 V three phase
- Peak Stall Torque
- 220 N.m 115...480 V three phase
- Nominal Torque
- 61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase
- Maximum Current Irms
- 96.8 A
- Shaft Length
- 80 mm (3.15 in)
- Speed Feedback Resolution
- 128 periods
- Motor Flange Size
- 205 mm (8.07 in)
- Torque Constant
- 2.58 N.m/A at 120 °C
- Number of Motor Poles
- 5
- Stator Resistance
- 0.3 Ohm
- Maximum Radial Force
- 4200 N at 1000 rpm, 3330 N at 2000 rpm, 2910 N at 3000 rpm
- Cooling Type
- Natural convection
- Centring Collar Diameter
- 180 mm (7.09 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 215 mm (8.46 in)
- Compliance
- Pro-active EU RoHS, Mercury Free, China RoHS
Maximum Mechanical Speed3800 rpm
Continuous Stall Current25.7 A
Continuous Power7900 W
Nominal Output Power3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase
Nominal Speed500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
Shaft Diameter38 mm (1.50 in)
Encoder TypeAbsolute multiturn SinCos Hiperface
Mounting SupportInternational standard flange
Electrical ConnectionRotatable right angled connector
Back Emf Constant161 V/krpm at 20 °C
Rotor Inertia129 kg.cm²
Stator Inductance8.2 mH
Maximum Axial Force740 N
Length405 mm (15.94 in)
Centring Collar Depth4 mm (0.16 in)
Mounting Holes Diameter14 mm (0.55 in)
IP RatingIP65 motor and shaft bushing, conforming to EN/IEC 60034-5
Warranty18 months
