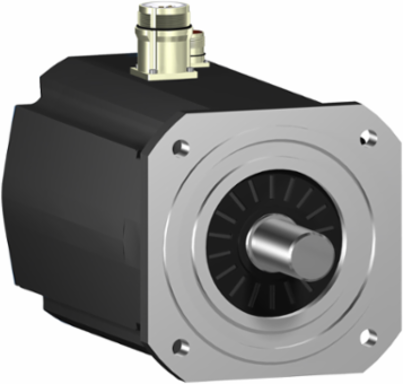

Schneider Electric SH32052P02F1000 Servo Motor 64.9Nm 3 Phase 3800 RPM IP54/IP65
- MPN: SH32052P02F1000
- PPN: SCH-SH32052P02F1000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for high-performance applications, the Schneider Electric SH32052P02F1000 Servo Motor delivers an impressive torque rating of 64.9 Nm, making it an ideal choice for automation and motion control tasks. With a robust three-phase design and a maximum speed of 3800 RPM, this motor ensures efficient operation and precise control in demanding environments. Additionally, its IP54/IP65 rating provides enhanced protection against dust and water, allowing it to perform reliably in both industrial and dynamic settings. This servo motor is a critical component for achieving optimal performance in various automation processes.
Documentation & Downloads
Specifications
Additional
- Continuous Power
- 7900 W
- Nominal Torque
- 61.6 N.m (115 V single phase), 56 N.m (230 V single phase), 38.1 N.m (400 V three phase), 28.4 N.m (480 V three phase)
- Continuous Stall Current
- 25.7 A
- Nominal Speed
- 500 rpm (115 V single phase), 1000 rpm (230 V single phase), 2000 rpm (400 V three phase), 2400 rpm (480 V three phase)
- Torque
- 64.9 N.m (574.41 lbf.in)
- Holding Torque
- 80 N.m
- Torque Constant
- 2.58 N.m/A at 120 °C
- Number of Motor Poles
- 5
- Stator Resistance
- 0.3 Ohm
- Maximum Radial Force
- 4200 N (1000 rpm), 3330 N (2000 rpm), 2910 N (3000 rpm)
- Rated Supply Voltage
- 115...480 V
- Length
- 454.5 mm (17.89 in)
- Shaft Length
- 80 mm (3.15 in)
- Motor Flange Size
- 205 mm (8.07 in)
- Centring Collar Depth
- 4 mm (0.16 in)
- Mounting Holes Diameter
- 14 mm (0.55 in)
- Net Weight
- 53.6 kg (118.17 lb)
- Mounting Support
- International standard flange
- Speed Feedback Resolution
- 128 periods
- IP Rating
- IP54 shaft bushing without shaft seal ring, IP65 motor and shaft bushing (EN/IEC 60034-5)
- Environmental Disclosure
- ENVPEP111049EN
Nominal Output Power3230 W (115 V single phase), 5860 W (230 V single phase), 7980 W (400 V three phase), 7140 W (480 V three phase)
Peak Stall Torque220 N.m (115...480 V three phase)
Maximum Current Irms96.8 A
Maximum Speed3800 rpm
Continuous Stall Torque64.9 N.m (115...480 V three phase)
Holding BrakeYes
Back EMF Constant161 V/krpm at 20 °C
Rotor Inertia145 kg.cm²
Stator Inductance8.2 mH
Maximum Axial Force740 N
Network Number Of PhasesThree phase
Shaft Diameter38 mm (1.50 in)
Shaft EndSmooth shaft
Centring Collar Diameter180 mm (7.09 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes215 mm (8.46 in)
Electrical ConnectionRotatable right angled connector
Encoder TypeAbsolute multiturn SinCos Hiperface
Cooling TypeNatural convection
ComplianceRoHS, REACh, Mercury free, PVC free, China RoHS, EU RoHS proactive compliance, WEEE compliant, Prop 65 compliant
