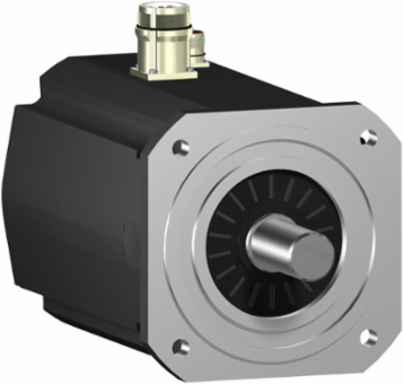

Schneider Electric SH32052P01F1100 Servo Motor 64.9 N.m, 3 Phase, IP65, 3.8k RPM, 53.6 kg
- MPN: SH32052P01F1100
- PPN: SCH-SH32052P01F1100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Schneider Electric servo motor is engineered for precision and reliability in automation and control applications. Delivering a robust torque of 64.9 N m, this 3-phase motor operates efficiently at 3.8k RPM, making it ideal for demanding motion control tasks. Designed with an IP65 rating, it ensures protection against dust and water ingress, contributing to durability in various environments. Weighing in at 53.6 kg, this motor combines substantial performance with robust construction, making it a valuable component for any sophisticated automation project.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Physical Attributes
- Motor Flange Size
- 205 mm
Shaft Length80 mm
Complementary Attributes
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Maximum Ambient Air Temperature For Operation
- 60.0 °C
- Maximum Current Irms
- 96.8 A
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Line Rated Current17.8 A
Maximum Axial Force Fa740 N
Maximum Mechanical Speed3800 rpm
Maximum Radial Force Fr4200 N 1000 rpm3330 N 2000 rpm2910 N 3000 rpm
Important Information Attributes
- Electrical Connection
- straight connector, rotatable right angled connector
- Nominal Speed
- 2000 rpm, 500 rpm 115 V single phase1000 rpm 230 V single phase, 2000 rpm 400 V three phase2400 rpm 480 V three phase
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Centring Collar Diameter
- 180 mm
- Continuous Power
- 7900 W
- Continuous Stall Torque
- 64.9 N.m 115...480 V three phase
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Encoder Type
- absolute single turn SinCos Hiperface
- Holding Torque
- 80 N.m
- Maximum Operational Altitude
- 3000.0 m
- Motor Figures
- 400.0 V
- Mounting Support
- international standard flange
- Number Of Motor Poles
- 5
- Peak Nominal Torque
- 220.0 N.m
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 145 kg.cm²
- Shaft End
- smooth shaft
- Speed Feedback Resolution
- 128 periods
- Stator Resistance
- 0.3 Ohm
- Temperature Copper Hot
- 130 °C
- Type Of Cooling
- natural convection
- Length Total
- 454.5 mm
- Maximum [In] Rated Current
- 17.8 A
- Package Weight(Lbs)
- 60.56 kg
- Warranty (In Months)
- 18
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque61.6 N.m 115 V single phase56 N.m 230 V single phase, 38.1 N.m 400 V three phase28.4 N.m 480 V three phase38.1 N.m full speed51.5 N.m half speed
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes215 mm
Continuous Stall Current25.7 A
Derating Altitude Scale80.0 m
Derating Temperature Scale80.0 °C
Device Short NameSH3
Holding Brakewith
Inertia16.0 kg.cm² of brake129.0 kg.cm² of motor
Minimum Operational Altitude0.0 m
Mounting Holes Diameter14 mm
Network Number Of Phases3
Number Of Mounting Holes4
Peak Stall Torque220 N.m 115...480 V three phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Shaft Diameter38 mm
Sizing ReferenceSH32052P
Stator Inductance2.95 mH
Sustainable PackagingNo
Torque Constant2.52 N.m/A 120 °C
Pep CodeENVPEP111049EN
[Us] Rated Supply Voltage115...480 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Environment Attributes Main
- Ip Degree Of Protection
- IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP111049EN
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP111049EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 3230 W 115 V single phase5860 W 230 V single phase, 7980 W 400 V three phase7140 W 480 V three phase
Output Current 3s Peak96.8 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
