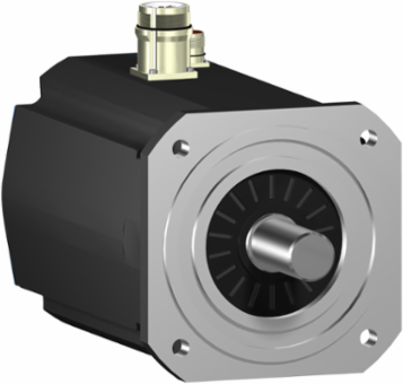

Schneider Electric SH32051P02A1100 Servo Motor 205 mm, 36.9 N.m, 3 Phase, 3800 RPM, IP65
- MPN: SH32051P02A1100
- PPN: SCH-SH32051P02A1100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This high-performance servo motor from Schneider Electric is designed for demanding applications in automation and motion control. Featuring a compact 205 mm frame and capable of delivering a robust torque of 36.9 N.m, it operates efficiently at speeds of up to 3800 RPM with a three-phase power supply. Its IP65 rating ensures that it can withstand harsh environmental conditions, making it an ideal choice for a variety of industrial settings where reliability and precision are critical.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 115...480 V
- Maximum Current Irms
- 87.2 A
- Nominal Output Power
- 2510 W (115 V single phase), 4240 W (230 V single phase), 5500 W (400 V three phase), 5200 W (480 V three phase)
- Maximum Speed
- 3800 rpm
- Peak Stall Torque
- 110 N.m (115...480 V three phase)
- Torque
- 36.9 N.m
- Maximum Axial Force
- 740 N
- Torque Constant
- 1.6 N.m/A at 120 b0C
- Stator Resistance
- 0.3 Ohm
- Phase
- three phase
- Shaft Diameter
- 38 mm (1.50 in)
- Frame Size
- 205 mm
- Centring Collar Diameter
- 180 mm (7.09 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 215 mm (8.46 in)
- Shaft End
- smooth shaft
- Net Weight
- 35 kg (77.16 lb)
- Cooling Type
- natural convection
- Speed Feedback Resolution
- 128 periods
- RoHS Compliance
- Yes (pro-active compliance, product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Country of Origin
- DE
Continuous Stall Current21 A
Continuous Power5500 W
Nominal Speed750 rpm (115 V single phase), 1500 rpm (230 V single phase), 3000 rpm (400 V three phase), 3600 rpm (480 V three phase)
Continuous Stall Torque36.9 N.m (115...480 V three phase)
Nominal Torque31.9 N.m (115 V single phase), 27 N.m (230 V single phase), 17.5 N.m (400 V three phase), 13.8 N.m (480 V three phase)
Maximum Radial Force3730 N (1000 rpm), 2960 N (2000 rpm), 2580 N (3000 rpm)
Number of Motor Poles5
Back emf Constant104 V/krpm at 20 b0C
Stator Inductance8.7 mH
Length321 mm (12.64 in)
Shaft Length80 mm (3.15 in)
Motor Flange Size205 mm (8.07 in)
Centring Collar Depth4 mm (0.16 in)
Mounting Holes Diameter14 mm (0.55 in)
Mounting Supportinternational standard flange
Electrical Connectionstraight connector
Materialelectric motor construction (implied)
Encoder TypeAbsolute multiturn SinCos Hiperface
IP RatingIP65 motor and shaft bushing conforming to EN/IEC 60034-5
PVC FreeYes
Warranty18 months
