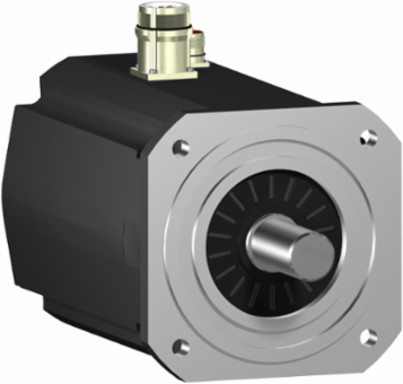

Schneider Electric SH32052P02A1200 Servo Motor 64.9 Nm, 3-Phase, 3800 RPM, IP65/IP67, 405 mm Length
- MPN: SH32052P02A1200
- PPN: SCH-SH32052P02A1200
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This servo motor from Schneider Electric is engineered for high performance within automation and control applications. With a robust output torque of 64.9 Nm and the ability to operate at speeds up to 3800 RPM, it ensures precise motion control in various industrial settings. Designed with an IP65/IP67 rating, this motor is well-suited for environments that require protection against dust and water, ensuring longevity and reliability in harsh conditions. Measuring 405 mm in length, it integrates seamlessly into diverse systems, making it an ideal choice for motion control tasks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Physical Attributes
- Motor Flange Size
- 205 mm
Shaft Length80 mm
Complementary Attributes
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Maximum Ambient Air Temperature For Operation
- 60.0 °C
- Maximum Current Irms
- 96.8 A
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Line Rated Current17.8 A
Maximum Axial Force Fa740 N
Maximum Mechanical Speed3800 rpm
Maximum Radial Force Fr4200 N 1000 rpm3330 N 2000 rpm2910 N 3000 rpm
Important Information Attributes
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Nominal Torque
- 61.6 N.m 115 V single phase56 N.m 230 V single phase, 38.1 N.m 400 V three phase28.4 N.m 480 V three phase38.1 N.m full speed51.5 N.m half speed
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 215 mm
- Continuous Stall Current
- 25.7 A
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 80.0 °C
- Device Short Name
- SH3
- Encoder Type
- absolute multiturn SinCos Hiperface
- Inertia
- 0.0 kg.cm² of brake129.0 kg.cm² of motor
- Minimum Operational Altitude
- 0.0 m
- Mounting Holes Diameter
- 14 mm
- Network Number Of Phases
- 3
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 220 N.m 115...480 V three phase
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Shaft Diameter
- 38 mm
- Sizing Reference
- SH32052P
- Stator Inductance
- 2.95 mH
- Sustainable Packaging
- No
- Torque Constant
- 2.52 N.m/A 120 °C
- Pep Code
- ENVPEP111049EN
- [Us] Rated Supply Voltage
- 115...480 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501524000
Nominal Speed2000 rpm, 500 rpm 115 V single phase1000 rpm 230 V single phase, 2000 rpm 400 V three phase2400 rpm 480 V three phase
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter180 mm
Continuous Power7900 W
Continuous Stall Torque64.9 N.m 115...480 V three phase
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionstraight connector
Holding Brakewithout
Maximum Operational Altitude3000.0 m
Motor Figures400.0 V
Mounting Supportinternational standard flange
Number Of Motor Poles5
Peak Nominal Torque220.0 N.m
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia129 kg.cm²
Shaft Endsmooth shaft
Speed Feedback Resolution128 periods
Stator Resistance0.3 Ohm
Temperature Copper Hot130 °C
Type Of Coolingnatural convection
Length Total405 mm
Maximum [In] Rated Current17.8 A
Package Weight(Lbs)54.65 kg
Warranty (In Months)18
Environment Attributes Main
- Ip Degree Of Protection
- IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5IP67 housing: conforming to IEC 60034-5
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP111049EN
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP111049EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 3230 W 115 V single phase5860 W 230 V single phase, 7980 W 400 V three phase7140 W 480 V three phase
Output Current 3s Peak96.8 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
