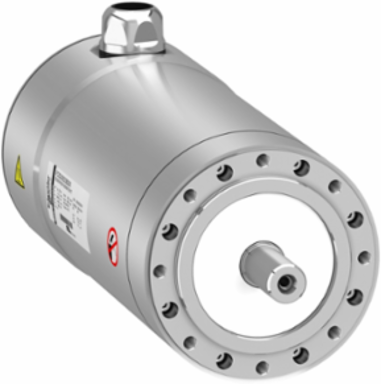

Schneider Electric FCE200524B200 SHS Servo Motor 1.55 Nm, 6000 RPM, IP69K, 100 mm Flange
Schneider Electric FCE200524B200 SHS Servo Motor 1.55 Nm, 6000 RPM, IP69K, 100 mm Flange
- MPN: FCE200524B200
- PPN: SCH-FCE200524B200
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3049.71/ EA
Description
Designed for precision and high performance, this servo motor from Schneider Electric offers exceptional capabilities for various automation and motion control applications. With a nominal torque of 1.55 Nm and a maximum speed of 6000 RPM, it ensures efficient operation in demanding environments. The motor features a robust IP69K rating, making it suitable for harsh conditions, while its compact design with a flange size of 100 mm and a smooth shaft allows for easy integration into existing systems. Weighing just 7.1 kg, this three-phase servo motor is compatible with the PacDrive 3 range, making it a versatile choice for enhancing your machinery's performance.
Specifications
Physical Attributes
- Key Width
- 6 mm
- Shaft Length
- 40 mm
Motor Flange Size100 mm
Complementary Attributes
- Maximum Current Irms
- 15.2 A LXM62, 15.2 A LXM52
- Line Rated Current
- 2.35 A
- Maximum Axial Force Fa
- 80 N
- Maximum Operational Altitude
- 1000.0 m
- Maximum Radial Force Fr
- 400 N 6000 rpm
- Maximum In Rated Current
- 2.35 A
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed6000 rpm
Maximum Permanent Current2.35 A
Minimum Operational Altitude0.0 m
Us Rated Supply Voltage400 V
Important Information Attributes
- Persona Type Ids
- EU, OM
- Continuous Stall Torque
- 2.5 N.m LXM62, 2.5 N.m LXM52
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Nominal Torque
- 1.55 N.m LXM62 400 V three phase, 1.55 N.m LXM52 400 V three phase
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Scope Perimeter
- At least in Europe
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 71 mm
- Continuous Stall Current
- 3.6 A
- Derating Temperature Scale
- 80.0 °C
- Electrical Connection
- cable with stripped end
- Holding Brake
- without
- Maximum Operational Altitude
- 1000.0 m
- Motor Figures
- 400.0 V
- Mounting Support
- flange
- Number Of Motor Poles
- 3
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- Yes
- Shaft Diameter
- 14 mm
- Sizing Reference
- SC005H2301
- Stator Inductance
- 13 mH
- Sustainable Packaging
- No
- Temperature Copper Hot
- 130 °C
- Type Of Cooling
- natural convection
- Warranty In Months
- 18
- Pn
- 1
Persona Type NamesEnd User, Original Equipment Manufacturer
Inertia0.0 kg.cm² of brake, 0.58 kg.cm² of motor
Nominal Speed6000 rpm LXM62, 6000 rpm LXM52, 6000 rpm
Peak Stall Torque10.3 N.m LXM62 2350 mA, 400 V, 3 phase, 10.3 N.m LXM52 2350 mA, 400 V, 3 phase
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter60 mm
Continuous Power970 W
Derating Altitude Scale100.0 m
Device Short NameSHS
Encoder Typeabsolute multiturn SinCos Hiperface
Holding Torque4.65 N.m
Minimum Operational Altitude0.0 m
Mounting Holes Diameter6 mm
Network Number Of Phases3
Number Of Motor Stacks3
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia0.58 kg.cm²
Shaft Endsmooth shaft
Speed Feedback Resolution128 periods
Stator Resistance2.7 Ohm
Switching Frequency8 kHz
Torque Constant0.7 N.m/A
Maximum In Rated Current2.35 A
Offer Owner Code190786
Length Total270.7 mm
Environment Attributes Main
- Ip Degree Of Protection
- IP69K motor: conforming to IEC 60034-5, IP67 motor: conforming to IEC 60034-5
- Take Back
- No
- Packaging Made With Recycled Cardboard
- Yes
Product CompatibilityLXM62 400 V, three phase, LXM52 400 V, three phase
Recycled Metal Content At Cr Level0 %
Packaging Without Single Use PlasticNo
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 970 W LXM62, 970 W LXM52
Output Current 3s Peak15.2 A
Specifications
- Country of Origin
- Germany
