Schneider Electric NSYAEDH20TB Thermoplastic Hinges for 20 mm Cover Height, 200 Angle, 10 kg/m2 Load Capacity

MPN: NSYAEDH20TB
PPN: SCH-NSYAEDH20TB
UNSPSC: 39121321

$14.91

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

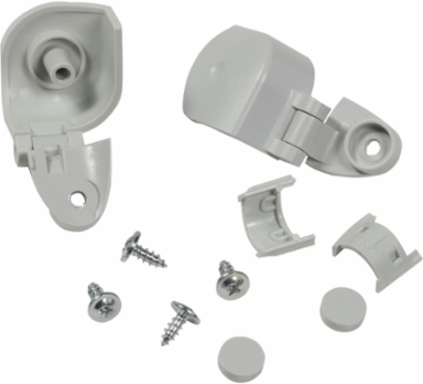

Designed for versatility and reliability, these hinges are crafted from durable thermoplastic PC, making them an ideal choice for various applications. Compatible with Schneider Electric's Thalassa TBS and TBP boxes, these hinges accommodate covers with a height of 20 mm, ensuring a secure and functional fit. With an operating angle of 200 degrees and a maximum load capacity of 10 kg/m2, they provide both flexibility and strength for your enclosure needs. Each set includes one hinge and is backed by an 18-month warranty, reflecting the quality and performance standards expected from Schneider Electric products.

Features

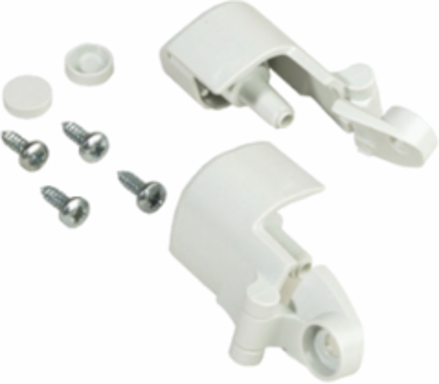

Set of 2 hinges for TBS and TBP boxes
It does not requiere machining for installation
Adapted to all covers with a height of 20mm with dimensions from 138x93mm
Maintains IP 66 when installed
They allow the lid to open fully to 200º

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Complementary Attributes

Maximum Load	10 kg/m2

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	-, -
Local Publishable Date	2026-04-10
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	fixing elements2 x hinge
Fixing Mode	by screws - on coverby fixing element - rear
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1904
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Operating Angle	200 °
Product Or Component Type	hinge
Range	PanelSeT
Sustainable Packaging	No
Customs Code	3926305000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
