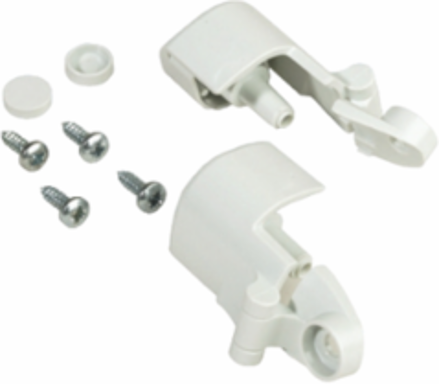

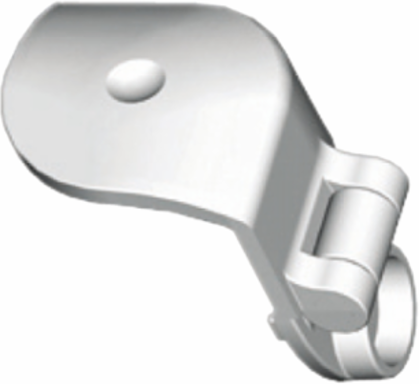

Schneider Electric NSYAEDH40TB Hinges for Cover Depth 40 mm, Thermoplastic, Load 10 kg/m²
Schneider Electric NSYAEDH40TB Hinges for Cover Depth 40 mm, Thermoplastic, Load 10 kg/m²
- MPN: NSYAEDH40TB
- PPN: SCH-NSYAEDH40TB
- UNSPSC: 39121410
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$14.15/ EA
Description
Designed for versatility and durability, these hinges are crafted from high-quality thermoplastic PC and are ideal for cover depths of 40 mm. With an impressive operating angle of 200°, they allow for smooth and efficient access to your enclosures, making them suitable for a variety of applications. Each set includes one hinge, which can support a maximum load of 10 kg/m², ensuring reliable performance in demanding environments. Manufactured by Schneider Electric in France, these hinges are compatible with the Thalassa TBS and TBP boxes, providing a seamless solution for your enclosure needs. With an 18-month warranty, you can trust in their quality and longevity.
Features

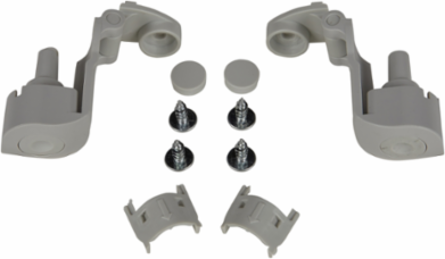

- Set of 2 hinges for TBS and TBP boxes
- It does not requiere machining for installation
- Adapted to all covers with a height of 40mm with dimensions from 138x93mm
- Maintains IP 66 when installed

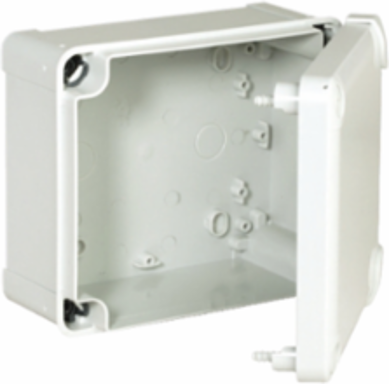

- They allow the lid to open fully to 200º
Specifications
Complementary Attributes
- Maximum Load
- 10 kg/m2
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 2 x hinge
- Fixing Mode
- by screws - on cover, by fixing element - rear
- Local Publishable Date
- 2025-12-11
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 36.000 g
- Product Or Component Type
- hinge
- Range
- PanelSeT
- Sustainable Packaging
- No
- Stocking Flag
- Y
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Legacy WEEE ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Operating Angle200 °
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Medium DescHinges, for cover-depth 40 mm. In thermoplastic PC with screws.
Product Kit IdentifierN
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- hinge
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
