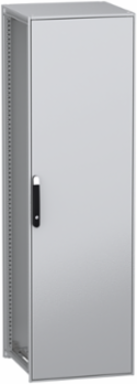

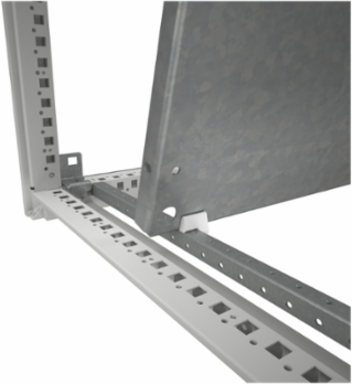

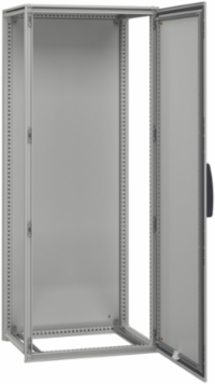

Schneider Electric NSYSFN20660 PanelSeT SFN Floor Standing Enclosure 2000x600x600mm IP55
- MPN: NSYSFN20660
- PPN: SCH-NSYSFN20660
CAD
$3039.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric NSYSFN20660 PanelSeT SFN Floor Standing Enclosure is engineered to meet the stringent demands of modern electrical installations. With its robust IP55 rating, this enclosure offers substantial protection against dust and water, making it suitable for use in a variety of challenging environments. The spacious dimensions of 2000x600x600mm provide ample room for equipment, ensuring that your systems remain organized and accessible. Designed for durability and reliability, this floor-standing enclosure is an excellent choice for facilities looking to enhance their electrical management with a focus on safety and efficiency.
Documentation & Downloads
Specifications
Additional

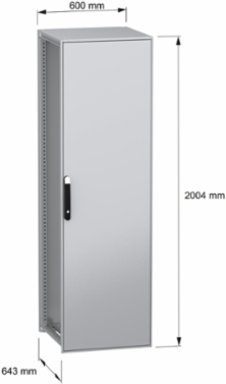

- Enclosure Height
- 2000 mm (78.74 in)
- Enclosure Depth
- 600 mm (23.62 in)
- Number of Doors
- 1
- Door Type
- Solid front
- Material
- Frame galvanised steel, uprights galvanised steel, door sheet steel, panels sheet steel, hinge zamak, handle polyamide 6 with 30% fiber glass
- Color
- Enclosure Gray RAL 7035, Handle Black RAL 9005
- NEMA Degree of Protection
- NEMA 3R/12
- IK Degree of Protection
- IK10 IEC 62262

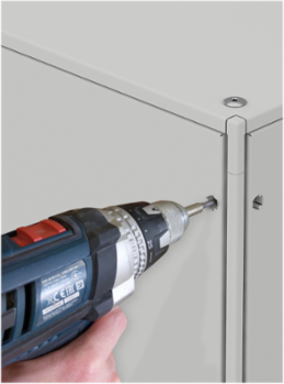

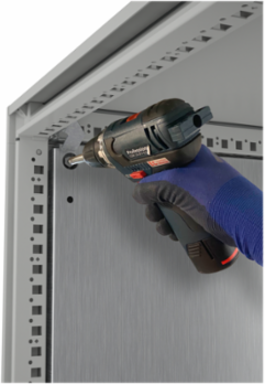

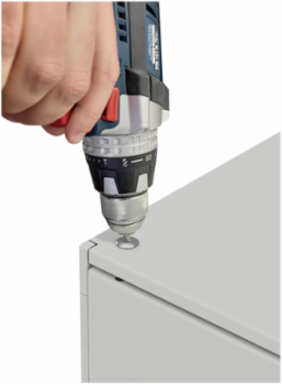

- Removable Parts

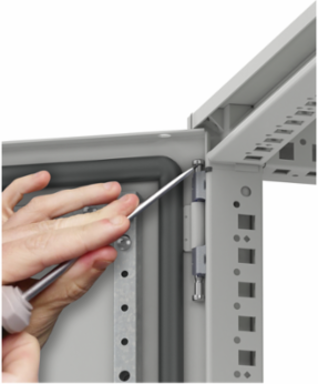

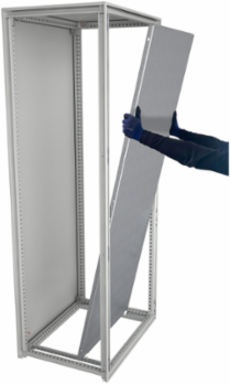

- Door, rear panel, roof, mounting plate bracket, sliding rail (all by screws)
- Mounting Plate
- Without mounting plate
- Sustainable Offer Status
- Green Premium product
- RoHS Compliance
- Pro-active compliance (Product out of EU RoHS legal scope)
- China RoHS Compliance
- Yes
Enclosure Width600 mm (23.62 in)
Enclosure MountingFloor-standing
Door Opening SideReversible 120°

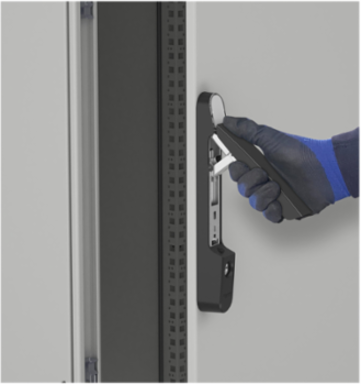

Lock Type4 points lock, handle with 5 mm double bar insert
Surface FinishEpoxy-polyester powder
StandardsIEC 62208
IP Degree of ProtectionIP55 IEC 60529

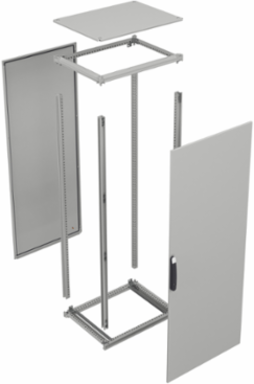

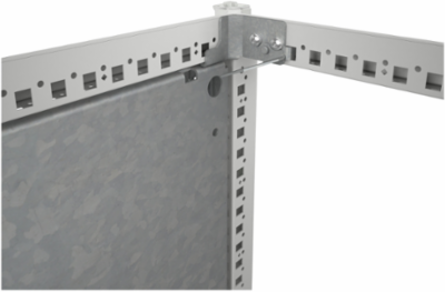

Device Composition2 sliding rails, 4 mounting plate quick-fixing brackets, 1 structure, 1 door, 1 locking system with handle door, 1 rear panel, 1 roof
Accessibility for OperationRear, front, sides of enclosure
Gland PlateWithout gland plate
REACH ComplianceFree of SVHC
Mercury FreeYes
