Schneider Electric NSYSFN2212802D Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2200x1200x800mm, 2 doors, IP55
- MPN: NSYSFN2212802D
- PPN: SCH-NSYSFN2212802D
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

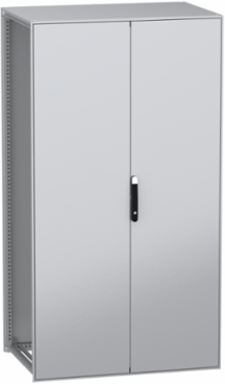

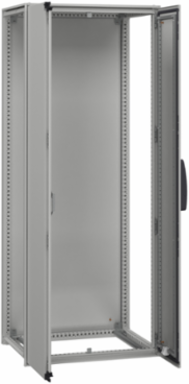

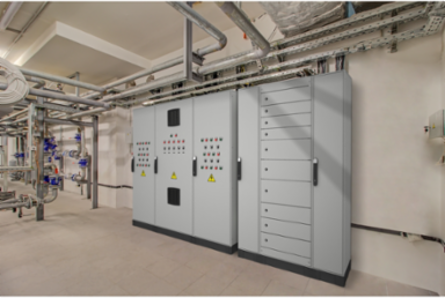

This PanelSeT SFN is a double-door floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2200 mm, 1200 mm and 800 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The doors and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, two plain doors, one rear panel, one roof, two sliding rails and one set of quick-fixing mounting plate brackets. The doors have an aperture up to 120 degrees. The main door has a four-point lock with a handle that has a 5 mm double-bar insert for security, while the secondary door has a locking bar system with a handle. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 1200 mm

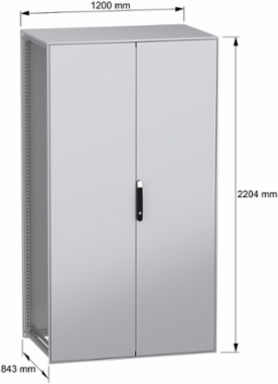

Enclosure Nominal Height2200 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition

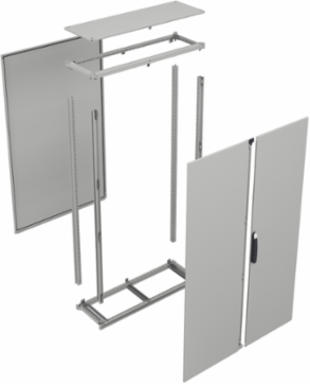

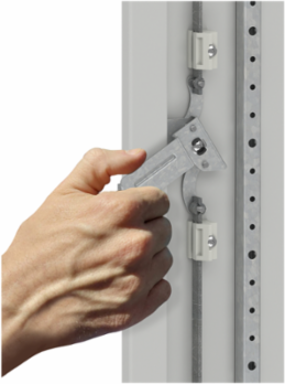

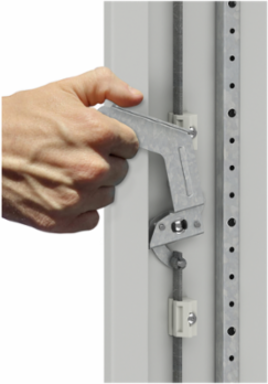

- 2 sliding rails4 mounting plate quick-fixing brackets, 1 structure right door, 1 rear panel, 1 roof, 2 door, 1 locking system with handle, 1 locking bar system 4 points right door1 locking bar system 2 points left door
- Material
- frame galvanised steel, uprights galvanised steeldoor sheet steel, panels sheet steelhinge zamakhandle polyamide 6 with 30 % fibre glass

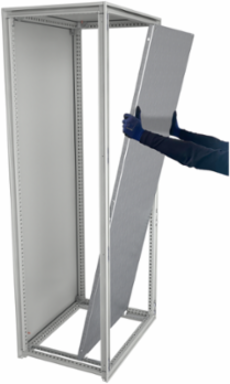

- Structure Type

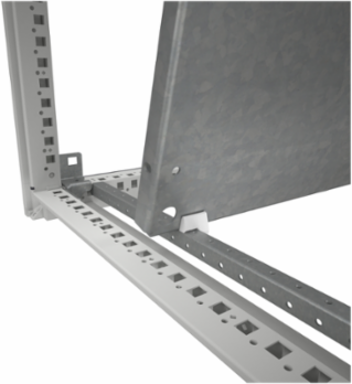

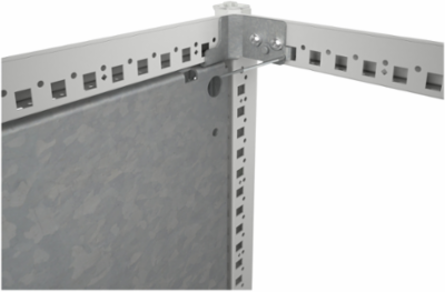

- panels and doors built into the structure, formed from a single section, perforated structure with a pitch of 25 mm, vertical uprights joined with top and bottom frames
- Carbon Footprint Of The Distribution Phase [A4]
- 28.65119157, 29 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 40.56321838, 41 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Enclosure Mounting
- floor-standing

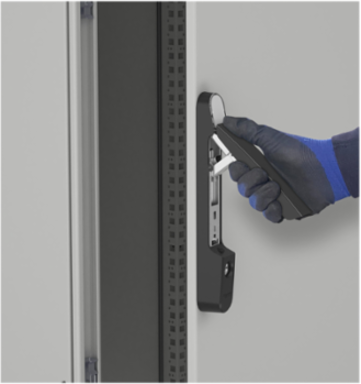

- Lock Type
- 4 points lock, handle with 5 mm double bar insert front right door
- Number Of Doors
- front face 2
- Product Name
- PanelSeT SFN
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Type Of Gland Plate
- without gland plate
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 97
- Package Weight(Lbs)
- 151.100 kg
- Warranty (In Months)
- 18
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -112103.0795
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door Opening Sideleft 120 °), right 120 °)

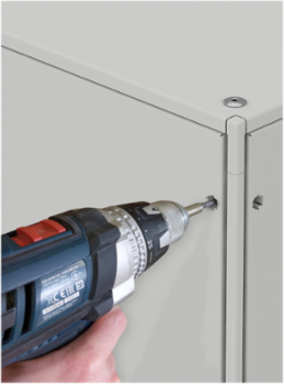

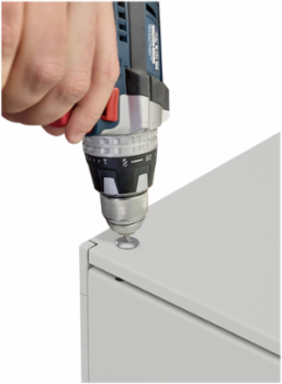

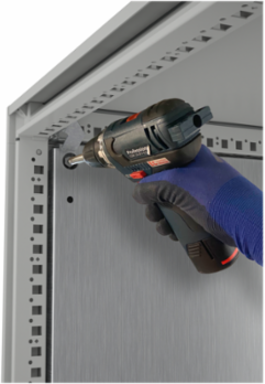

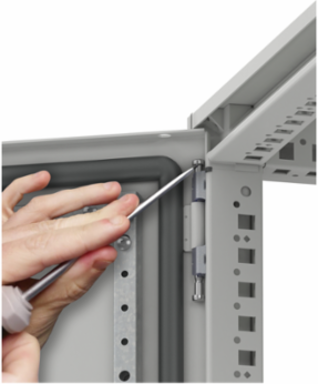

Removable Partsdoor by screws hingemounting plate by screws mounting plate bracket, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws
Certificate AgencyIEC 62208, UL, cUL
Carbon Footprint Of The End-of-life Phase [C1 To C4]342 kg CO2 eq., 342.2625653
Carbon Footprint Of The Manufacturing Phase [A1 To A3]389 kg CO2 eq., 388.6426354
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2507020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2306
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content45 %
Door TypeSolid front
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesuitable enclosure
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint800 kg CO2 eq.
Pep CodeENVPEP2301018EN
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle38958.195
Customs Code9403200090
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 800.1196107
- Environmental Disclosure
- ENVPEP2301018EN
- Ip Degree Of Protection
- IP55 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-31
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level45 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R/12
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2301018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
