Schneider Electric SH30702P1BF4100 SH3 servomotor, 70mm, 2 stacks, keyed Shaft, Multiturn DSL 18bit, Brake, OneMotorCable angular M23, IP65/65
- MPN: SH30702P1BF4100
- PPN: SCH-SH30702P1BF4100
CAD
$4050.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

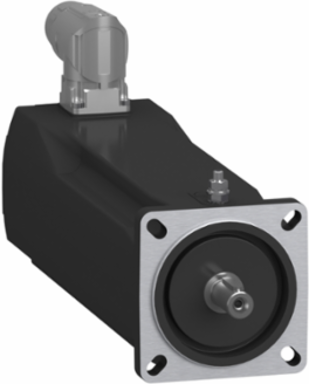

SH3 servomotor, 70mm, 2 stacks, keyed Shaft, Multiturn DSL 18bit, Brake, OneMotorCable angular M23, IP65/65
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France |
|---|
Physical Attributes
| Key Width | 4 mm |
|---|---|
| Shaft Length | 23 mm |
| Motor Flange Size | 70 mm |
|---|
Complementary Attributes
| Minimum Ambient Air Temperature For Operation | -20.0 °C, -20.0 °C |
|---|---|
| Maximum Ambient Air Temperature For Operation | 60.0 °C |
| Maximum Current Irms | 11.8 A |
| Maximum Operational Altitude | 3000.0 m |
| Minimum Operational Altitude | 0.0 m |
| Line Rated Current | 2.6 A |
|---|---|
| Maximum Axial Force Fa | 160 N |
| Maximum Mechanical Speed | 8000 rpm |
| Maximum Radial Force Fr | 1050 N 1000 rpm |
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Minimum Ambient Air Temperature For Operation | -20.0 °C, -20.0 °C |
| Nominal Torque | 2.1 N.m 230 V single phase, 1.8 N.m 400 V three phase, 1.8 N.m 480 V three phase1.8 N.m full speed2.05 N.m half speed |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3392314496, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 16 kg CO2 eq., 15.7603931204 |
| Local Data Status | Publishable |
| Pre Comm Date | 2020-10-05 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 82 mm |
| Continuous Stall Current | 2.9 A |
| Derating Altitude Scale | 80.0 m |
| Derating Temperature Scale | 80.0 °C |
| Device Short Name | SH3 |
| Encoder Type | absolute multiturn Hiperface DSL |
| Holding Torque | 3 N.m |
| Maximum Operational Altitude | 3000.0 m |
| Motor Figures | 400.0 V |
| Mounting Support | international standard flange |
| Number Of Motor Poles | 3.0 |
| Peak Nominal Torque | 7.6 N.m |
| Phase | three phase |
| Product Or Component Type | servo motor |
| Rotor Inertia | 0.482 kg.cm² |
| Shaft End | parallel key |
| Software Version | EIME v5.8.1 |
| Stator Inductance | 10.65 mH |
| Sustainable Packaging | No |
| Torque Constant | 0.7 N.m/A 120 °C |
| Type Of Cooling | natural convection |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Length Total | 213 mm |
| Brake Pull-in Power | 7 W |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501524000 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Nominal Speed | 6000 rpm, 3000 rpm 230 V single phase, 6000 rpm 400 V three phase7200 rpm 480 V three phase |
| Carbon Footprint Of The Distribution Phase [A4] | 0.4644619165, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0319365111 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 659 kg CO2 eq., 2659.0674927991 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 60 mm |
| Continuous Power | 1130 W |
| Continuous Stall Torque | 2.04 N.m 115...480 V three phase |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Electrical Connection | rotatable right angled connectorquicklock rotatable right angled connector |
| Holding Brake | with |
| Inertia | 0.072 kg.cm² of brake0.41 kg.cm² of motor |
| Minimum Operational Altitude | 0.0 m |
| Mounting Holes Diameter | 5.5 mm |
| Network Number Of Phases | 3 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 7.6 N.m 115...480 V three phase |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Shaft Diameter | 11 mm |
| Sizing Reference | SH30702P |
| Speed Feedback Resolution | 262144 points/turn x 4096 turns |
| Stator Resistance | 4.2 Ohm |
| Temperature Copper Hot | 130 °C |
| Total Lifecycle Carbon Footprint | 2 676 kg CO2 eq. |
| Pep Code | ENVPEP111049EN |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 5427.2812 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| [Us] Rated Supply Voltage | 115...480 V |
| Maximum [In] Rated Current | 2.6 A |
| Package Weight(Lbs) | 3.6 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ip Degree Of Protection | IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111049EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 2675.6635157966 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP111049EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 610 W 230 V single phase, 1130 W 400 V three phase, 1130 W 480 V three phase |
|---|
