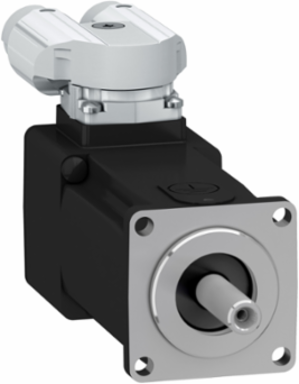

Schneider Electric SH30402P07A2000 SH3 servomotor, 40mm, 2 stacks, smooth Shaft, SinCos Multiturn 16, no Brake, angular, IP54/65
- MPN: SH30402P07A2000
- PPN: SCH-SH30402P07A2000
CAD
$1298.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SH3 servomotor, 40mm, 2 stacks, smooth Shaft, SinCos Multiturn 16, no Brake, angular, IP54/65
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Physical Attributes
- Motor Flange Size
- 40 mm
Shaft Length25 mm
Complementary Attributes
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Maximum Ambient Air Temperature For Operation
- 60.0 °C
- Maximum Mechanical Speed
- 9000 rpm
- Minimum Operational Altitude
- 0.0 m
- Us Rated Supply Voltage
- 115...480 V
Line Rated Current1.27 A
Maximum Current Irms7.2 A
Maximum Operational Altitude3000.0 m
Maximum In Rated Current1.27 A
Important Information Attributes
- Persona Type Ids
- EU, OM
- Inertia
- 0.0 kg.cm² of brake, 0.042 kg.cm² of motor
- Nominal Speed
- 9000 rpm, 4000 rpm 115 V single phase, 4000 rpm 230 V single phase, 9000 rpm 400 V three phase, 9000 rpm 480 V three phase
- Carbon Footprint Of The Distribution Phase A4
- 0.0808937838, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0055622757, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 660 kg CO2 eq., 660.1078423559
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 46 mm
- Continuous Stall Current
- 1.5 A
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 80.0 °C
- Device Short Name
- SH3
- Encoder Type
- absolute multiturn SinCos Hiperface
- Maximum Operational Altitude
- 3000.0 m
- Motor Figures
- 400.0 V
- Mounting Support
- international standard flange
- Number Of Motor Poles
- 5.0
- Peak Nominal Torque
- 1.5 N.m
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 0.0419 kg.cm²
- Shaft End
- smooth shaft
- Software Version
- EIME v5.8.1
- Stator Inductance
- 6.4 mH
- Sustainable Packaging
- No
- Torque Constant
- 0.26 N.m/A 120 °C
- Type Of Cooling
- natural convection
- Warranty In Months
- 18
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Length Total
- 93.4 mm
Persona Type NamesEnd User, Original Equipment Manufacturer
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque0.292 N.m 115 V single phase, 0.292 N.m 230 V single phase, 0.31 N.m 400 V three phase, 0.31 N.m 480 V three phase, 0.31 N.m full speed, 0.35 N.m half speed
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0590828108
Carbon Footprint Of The Manufacturing Phase A1 To A33 kg CO2 eq., 2.7449351351
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter30 mm
Continuous Power290 W
Continuous Stall Torque0.39 N.m 115...480 V three phase
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right angled connector
Holding Brakewithout
Minimum Operational Altitude0.0 m
Mounting Holes Diameter4.5 mm
Network Number Of Phases3
Number Of Mounting Holes4
Peak Stall Torque1.5 N.m 480 V three phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Shaft Diameter8 mm
Sizing ReferenceSH30402P
Speed Feedback Resolution16 periods
Stator Resistance11.6 Ohm
Temperature Copper Hot120 °C
Total Lifecycle Carbon Footprint663 kg CO2 eq.
Maximum In Rated Current1.27 A
Pep CodeENVPEP111049EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh1347.311
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Environment Attributes Main
- Ip Degree Of Protection
- IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5, IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint662.9983163613
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP111049EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 152 W 115 V single phase, 152 W 230 V single phase, 275 W 400 V three phase, 289 W 480 V three phase
Output Current 3s Peak7.2 A
