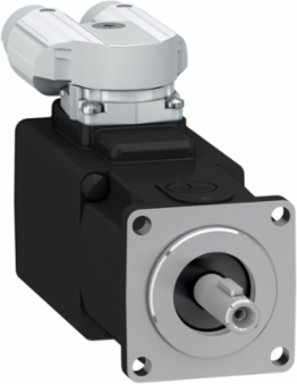

SH3 servomotor, 40mm, 1 stack, keyed Shaft, SinCos Multiturn 16, Brake, angular, IP54/65
Specifications
Physical Attributes
- Key Width
- 3 mm
- Shaft Length
- 25 mm
Motor Flange Size40 mm
Complementary Attributes
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Maximum Ambient Air Temperature For Operation
- 60.0 °C
- Maximum Mechanical Speed
- 9000 rpm
- Minimum Operational Altitude
- 0.0 m
Line Rated Current1.02 A
Maximum Current IRMS4.5 A
Maximum Operational Altitude3000.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Inertia
- 0.017 kg.cm² of brake, 0.023 kg.cm² of motor
- Nominal Speed
- 9000 rpm, 4000 rpm 115 V single phase, 4000 rpm 230 V single phase, 9000 rpm 400 V three phase, 9000 rpm 480 V three phase
- Carbon Footprint Of The Distribution Phase A4
- 0.0808937838, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0055622757, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 405 kg CO2 eq., 405.2697368661
- Local Publishable Date
- 2026-01-12
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Centring Collar Diameter
- 30 mm
- Continuous Power
- 170 W
- Continuous Stall Torque
- 0.21 N.m 115...480 V three phase
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- rotatable right angled connector
- Holding Brake
- with
- Maximum Operational Altitude
- 3000.0 m
- Motor Figures
- 400.0 V
- Mounting Support
- international standard flange
- Peak Nominal Torque
- 0.72 N.m
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 0.04 kg.cm²
- Shaft End
- parallel key
- Speed Feedback Resolution
- 16 periods
- Stator Resistance
- 17.2 Ohm
- Temperature Copper Hot
- 120 °C
- Total Lifecycle Carbon Footprint
- 408 kg CO2 eq.
- Us Rated Supply Voltage2
- 115...480 V
- Medium Desc
- SH3 servomotor, 40mm, 1 stack, keyed Shaft, SinCos Multiturn 16, Brake, angular, IP54/65
- Product Kit Identifier
- N
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model End Of Life C1 C4 2
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Maximum In Rated Current5
- 1.02 A
Persona Type NamesEnd User, Original Equipment Manufacturer
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque0.176 N.m 115 V single phase, 0.176 N.m 230 V single phase, 0.184 N.m 400 V three phase, 0.184 N.m 480 V three phase, 0.18 N.m full speed, 0.2 N.m half speed
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0590828108
Carbon Footprint Of The Manufacturing Phase A1 To A33 kg CO2 eq., 2.7449351351
Local Data StatusPublishable
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionAdvanced
Market SegmentationIndustrial
Circle Diameter Of The Mounting Holes46 mm
Continuous Stall Current1.12 A
Derating Altitude Scale80.0 m
Derating Temperature Scale80.0 °C
Device Short NameSH3
Encoder Typeabsolute multiturn SinCos Hiperface
Holding Torque0.4 N.m
Minimum Operational Altitude0.0 m
Mounting Holes Diameter4.5 mm
Package Weight Lbs627.0 g
Peak Stall Torque0.75 N.m 480 V three phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityYes
Shaft Diameter8 mm
Sizing ReferenceSH30402P
Stator Inductance7.3 mH
Sustainable PackagingNo
Torque Constant0.19 N.m/A 120 °C
Type Of Coolingnatural convection
Maximum In Rated Current21.02 A
Stocking FlagY
Pep CodeENVPEP111049EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Energy Model Manufacturing A1 A3 2Energy model used: Germany
Energy Model Use B6 2Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5, IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP111049EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Carbon Footprint408.1602108715
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
Output Attributes
- Nominal Output Power
- 77 W 115 V single phase, 77 W 230 V single phase, 166 W 400 V three phase, 166 W 480 V three phase
Output Current 3s Peak4.5 A
