Schneider Electric SH30401P07F2000 SH3 servomotor, 40mm, 1 stack, smooth Shaft, SinCos Multiturn 16, Brake, angular, IP54/65
Schneider Electric SH30401P07F2000 SH3 servomotor, 40mm, 1 stack, smooth Shaft, SinCos Multiturn 16, Brake, angular, IP54/65
- MPN: SH30401P07F2000
- PPN: SCH-SH30401P07F2000
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2352.97/ EA
Description

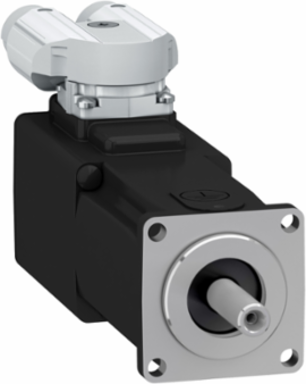

SH3 servomotor, 40mm, 1 stack, smooth Shaft, SinCos Multiturn 16, Brake, angular, IP54/65
Specifications
Physical Attributes
- Motor Flange Size
- 40 mm
Shaft Length25 mm
Complementary Attributes
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Maximum Ambient Air Temperature For Operation
- 60.0 °C
- Maximum Mechanical Speed
- 9000 rpm
- Minimum Operational Altitude
- 0.0 m
- Us Rated Supply Voltage
- 115...480 V
Line Rated Current1.02 A
Maximum Current Irms4.5 A
Maximum Operational Altitude3000.0 m
Maximum In Rated Current1.02 A
Important Information Attributes
- Persona Type Ids
- EU, OM
- Inertia
- 0.017 kg.cm² of brake, 0.023 kg.cm² of motor
- Nominal Speed
- 9000 rpm, 4000 rpm 115 V single phase, 4000 rpm 230 V single phase, 9000 rpm 400 V three phase, 9000 rpm 480 V three phase
- Carbon Footprint Of The Distribution Phase A4
- 0.0808937838, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0055622757, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 405 kg CO2 eq., 405.2697368661
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 46 mm
- Continuous Stall Current
- 1.12 A
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 80.0 °C
- Device Short Name
- SH3
- Encoder Type
- absolute multiturn SinCos Hiperface
- Holding Torque
- 0.4 N.m
- Minimum Operational Altitude
- 0.0 m
- Mounting Holes Diameter
- 4.5 mm
- Network Number Of Phases
- 3
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 0.75 N.m 480 V three phase
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- Yes
- Shaft Diameter
- 8 mm
- Sizing Reference
- SH30402P
- Speed Feedback Resolution
- 16 periods
- Stator Resistance
- 17.2 Ohm
- Temperature Copper Hot
- 120 °C
- Total Lifecycle Carbon Footprint
- 408 kg CO2 eq.
- Maximum In Rated Current
- 1.02 A
- Pep Code
- ENVPEP111049EN
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
- Functional Unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 827.1745
- Energy Model Installation A5 2
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model End Of Life C1 C4 2
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Pn
- 1
Persona Type NamesEnd User, Original Equipment Manufacturer
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque0.176 N.m 115 V single phase, 0.176 N.m 230 V single phase, 0.184 N.m 400 V three phase, 0.184 N.m 480 V three phase, 0.18 N.m full speed, 0.2 N.m half speed
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0590828108
Carbon Footprint Of The Manufacturing Phase A1 To A33 kg CO2 eq., 2.7449351351
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter30 mm
Continuous Power170 W
Continuous Stall Torque0.21 N.m 115...480 V three phase
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right angled connector
Holding Brakewith
Maximum Operational Altitude3000.0 m
Motor Figures400.0 V
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Peak Nominal Torque0.72 N.m
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia0.04 kg.cm²
Shaft Endsmooth shaft
Software VersionEIME v5.8.1
Stator Inductance7.3 mH
Sustainable PackagingNo
Torque Constant0.19 N.m/A 120 °C
Type Of Coolingnatural convection
Warranty In Months18
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional Unit Quantity1
Reference Lifetime In Y210
Energy Model Manufacturing A1 A3 2Energy model used: Germany
Energy Model Use B6 2Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Offer Owner Code190786
Length Total99.4 mm
Environment Attributes Main
- Ip Degree Of Protection
- IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5, IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint408.1602108715
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP111049EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 77 W 115 V single phase, 77 W 230 V single phase, 166 W 400 V three phase, 166 W 480 V three phase
Output Current 3s Peak4.5 A
Specifications
- Country of Origin
- Germany
