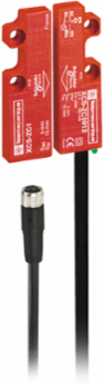

Telemecanique Sensors XCSDMC591L01M8 Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMC, 1 NC + 1 NO, staggered, M8 0.15 m
- MPN: XCSDMC591L01M8
- PPN: TES-XCSDMC591L01M8
CAD
$241.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCSDMC Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 1 normally open and 1 normally closed staggered contact in presence of magnet + one Led. It has a compact rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Cable Length | 0.15 m |
| Component Name | XCSDMC |
| Material | plastic |
| Connector Type | M8 |
| Contact Operation | staggered |
| Electrical Connection | connector on flying lead |
| [Ui] Rated Insulation Voltage | 100 V DC |
| [Ue] Rated Operational Voltage | 24 V DC |
|---|---|
| Product Or Component Type | coded magnetic switch |
| Design | rectangular, compact |
| Size | 51 x 16 x 7 mm |
| Contacts Type And Composition | 1 NC + 1 NO |
| Local Signalling | 1 LED |
| Approach Directions | 3 directions |
| Number Of Poles | 2 |
Complementary
| Maximum [Ie] Rated Operational Current | 100 mA |
|---|---|
| Switching Frequency | 150 Hz |
| Switching Capacity In Ma | 5...100 mA |
| Contacts Material | rhodium |
| Resistance Across Terminals | 57 Ohm |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-5-1 |
| [Sa] Assured Operating Distance | 5 mm |
| Breaking Capacity | 3 VA |
| Enclosure Material | thermoplastic PBT |
| Depth | 7 mm |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Height | 51 mm |
|---|---|
| Short-Circuit Protection | 500 mA external cartridge fuse gG (gl) |
| [Sar] Assured Tripping Distance | 15 mm |
| Insulation Resistance | 1000 MOhm |
| Net Weight | 0.101 kg |
| Maximum Switching Voltage | 100 V DC |
| Cable Material | PVC |
| Safety Reliability Data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Width | 16 mm |
| Electrical Durability | 1200000 cycles |
Environment
| Product Certifications | UL || CSA |
|---|---|
| Standards | UL 508 || EN/ISO 12100 || CSA C22.2 No 14 || ISO 14119 || EN/IEC 60204-1 || EN/IEC 60947-5-1 |
| Vibration Resistance | 10 gn 10-150 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Maximum Sensitivity To Magnetic Fields | 0.3 mT |
| Ambient Air Temperature For Operation | -25-85 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| Protective Treatment | TH |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
