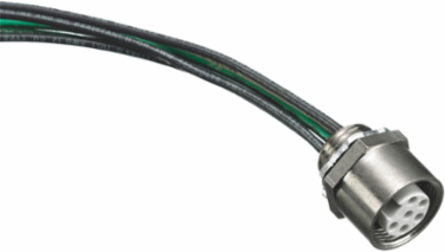

Hubbell Wiring Device-Kellems RF2003PA001 Linkosity Female Receptacle 3-Wire 20A 600V AC 1 Inch Length
- MPN: RF2003PA001
- UPC: 783585185026
- PPN: HBL-RF2003PA001
- UNSPSC: 39121406
CAD
$206.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal and Control, Linkosity, Female Receptacle, 3-Wire, 20A 600V AC, PA Wire Code, 1' Length
Features
- Linkosity3-Wire
- 20A 600V AC
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 8.000 in |
| Application | Plug Together Power Distribution, No Pass Thru |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase Control |
| Voltage Rating | 250V AC Max kV |
| Wire Size | #12 AWG |
| Engineering Drawing 1 Display Text | RF2003PA001 AutoCAD Drawing |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Connectivity | Screw Terminals |
| Nema Rating | Non-NEMA |
| Number Of Wires | 3-Wire Grounding |
| Description - Invoice | LINKOSITY RECEP 20A 3W, 1FT |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| BOX SIZE | 11.000x10.400x10.600 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585185026 |
| Case Weight | 13.750 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 20 A |
|---|---|
| Amperage Rating | 20 A |
| Color | Gray |
| NEMA Rating | Non-NEMA |
| Number of Wires | 3-Wire Grounding |
| Special Features | Standard Product |
| Wattage | 5000 W |
| Weight | 0.25 lb. |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| General Literature Asset 3 Display Text | Linkosity Wiring System |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Class Code | A28 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A28A300 |
| Current Rating | 20 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 5.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A107 |
