Fluke SFPOWERMETER SimpliFiber® Pro Optical Power Meter and Fiber Test Kits
- MPN: SFPOWERMETER
- UPC: 754082063148
- PPN: FLU-SFPOWERMETER
CAD
$2440.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

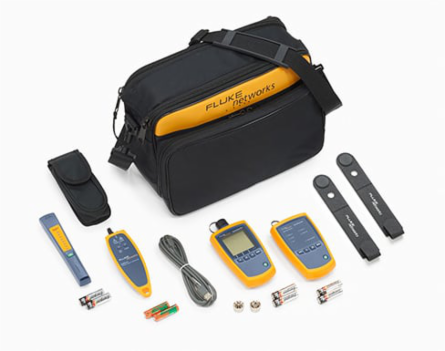

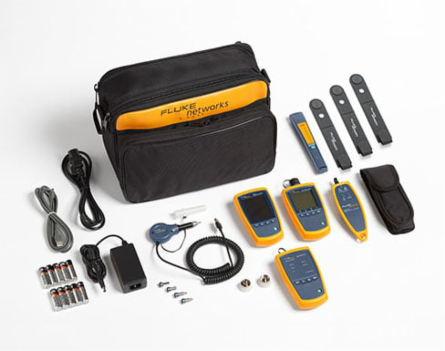

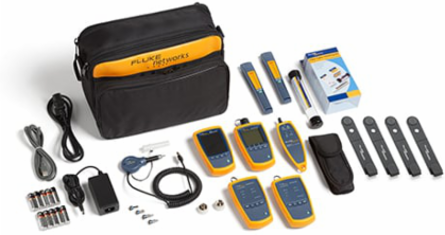

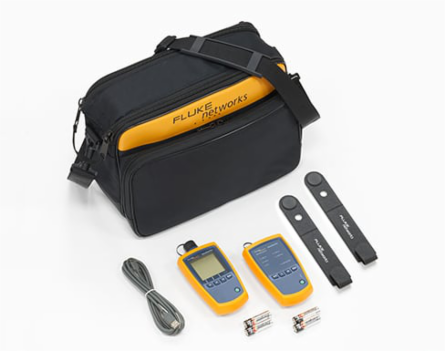

Today’s high-bandwidth premises networks depend on a reliable fiber optic infrastructure. Proper installation and maintenance of fiber cabling is imperative for minimizing network downtime. Whether you require basic fiber verification capabilities, advanced troubleshooting and inspection, or documented loss and power measurements, Fluke Networks’ SimpliFiber® Pro Optical Power Meter and Fiber Test Kits are the best first-line fiber instruments to meet your needs. SimpliFiber® Pro Optical Power Meter and Fiber Test Kits include all the tools necessary to verify and troubleshoot optical fiber cabling systems, measure loss and power levels, and inspect and clean connector end-faces. Replacing the popular SimpliFiber series, these next generation optical loss test kits boast industry-leading functions such as dual-wavelength testing and automatic-wavelength detection, in addition to unique features such as CheckActive™, FindFiber™, and Min/Max. With such advanced, yet easy-to-use, capabilities that reduce test times, SimpliFiber Pro is simply the best first-line fiber test kit on the market.
Documentation & Downloads
Specifications
Singlemode Optical Source
- Emitter Type
- 1490 nm/1625 nm: dual DFB laser || 1310 nm/1550 nm: dual FP laser
- Wavelength Accuracy
- 1550 nm: +/- 30 nm || 1310 nm: +/- 20 nm
- Minimum output power
- 1490 nm/1625 nm: ≥ -3 dBm (typical) || 1310/1550 nm ≥ -7dBm (typical)
- Auto Dual-Wavelength Switching
- Yes. Can be enabled or disabled by user.
- Launch Condition
- 9/125 μm fiber
- Battery Life2
- 30 hrs (typical)
- Low Battery Warning
- LED blinks.
Central wavelength1550 nm: ±30 nm || 1490 nm: ±3 nm || 1310 nm: ±20 nm || 1625 nm: ±5 nm
Spectral width (RMS)1550 nm: 3 nm (maximum) || 1310 nm: 2 nm (maximum) || 1490 nm/1625 nm: 1 nm (maximum)
Power Output Stability1±0.25 dB over 8 hours
Optical ConnectorFixed SC
FindFiber Code Generation1490 nm/1625 nm is fixed at ID 3. || 1310/1550 source is fixed at ID 2
Automatic Power Off30 minutes (can be enabled or disabled by user)
Weight9.8 oz (278 grams)
FindFiber Source Specifications
- Emitter Type
- Laser
- FindFiber Code Generation
- 1 through 8. Default is 3.
- Battery Life
- > 80 Hours (typical)
- Low Battery Warning
- LED blinks
- Weight
- 4.4 oz (125 g)
Source ConnectorFixed SC
Power On/Low-battery IndicatorLED
Automatic Power Off30 minutes
Size (L x W x H)7.1 in x 1.3 in x 1.0 in (17.9 cm x 3.2 cm x 2.5 cm)
SafetyMeets Class 1 CDRH

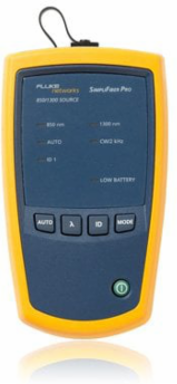

Multimode Optical Source
- Emitter Type
- LED
- Wavelength Accuracy
- 1300 nm: +/- 20 nm || 850 nm: +/-30 nm
- Minimum Output Power
- 850/1300 nm: ³ -20 dBm
- Auto Dual-Wavelength Switching
- Yes. Can be enabled/disabled by user.
- FindFiber Code Generation
- Yes. Fixed at ID 1.
- Power Requirement
- 2 AA Alkaline batteries.
- Automatic Power Off
- 30 minutes (can be disabled by user)
- Size (L x W x H)
- 5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm)
Central Wavelength850 nm, 1300 nm
Spectral Width (FWHM)850 nm: 50 nm (typical) || 1300 nm: 135 nm (typical)
Power Output Stability1±0.1 dB over 8 hours
Optical Output ConnectorFixed SC
ModesCW, 2 kHz modulated, Auto-wavelength
Battery Life240 hrs (typical)
Low Battery WarningYes, LED blinks
Weight1.8 oz (278 g)

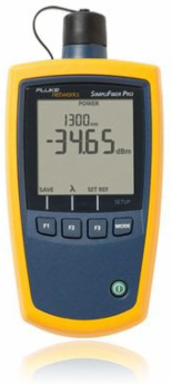

Optical Power Meter
- Detector Type
- InGaAs
- Measurement Range
- +10 to -52 dBm (850 nm) || +10 to -60 dBm (1300, 1310, 1490, 1550, 1625 nm)
- Power Measurement Uncertainty3
- ±0.25 dB
- Auto Dual-Wavelength Switching
- Yes
- Auto-Wavelength Detection
- Yes
- External Interface
- USB, 2.0 full speed
- Display update rate
- 1 reading per second
- FindFiber ID detection
- Yes
- Battery Life4
- > 50 Hours (typical)
- Low Battery Warning
- Yes, low battery icon blinks
- Weight
- 11.5 oz (325 grams)
Calibrated Wavelengths850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
Power Measurement Linearity±0.2 dB (850 nm) || ±0.1 dB (1300, 1310, 1490, 1550, 1625 nm)
Display Resolution, dB or dBm0.01 dB
Power Display UnitsdBm, mW, μW
Data Storage1000 records, multiple wavelengths per record
Optical ConnectorRemovable adapter, SC adapter as default, optional adapters include LC, ST
ReferenceIndividually set for each wavelength
Power Requirement2 AA Alkaline batteries
Automatic Power Off10, 20, 30 or 60 minutes (can be disabled by user)
Size (L x W x H)6.4 in x 3.2 in x 1.5 in (16.5 cm x 8.0.cm x 3.9 cm)
Environmental Specifications
- Operating Temperature
- -10º C to 50º C
- Operating Humidity
- 95% (10º C to 35º C) Non-Condensing75% (35º C to 40º C) Non-CondensingUncontrolled <10º C
Storage Temperature-20º C to 50º C
EMI, RFI, EMCStandards compliant
