Fluke SFSINGLEMODESOURCE SimpliFiber® Pro Optical Power Meter and Fiber Test Kits

MPN: SFSINGLEMODESOURCE
UPC: 754082063155
PPN: FLU-SFSINGLEMODESOURCE

$4099.19

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

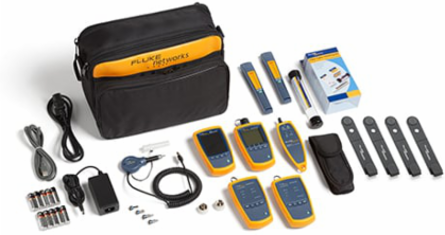

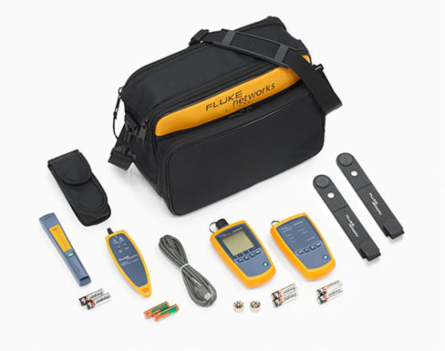

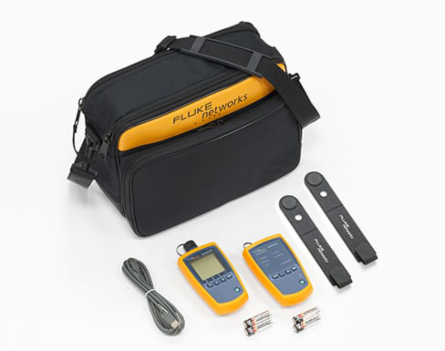

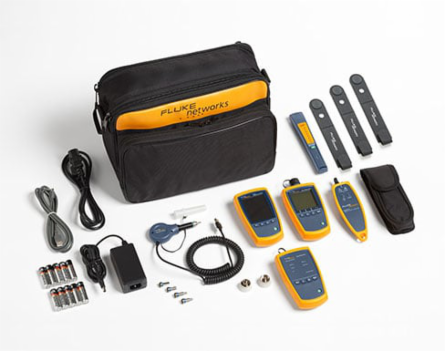

Today’s high-bandwidth premises networks depend on a reliable fiber optic infrastructure. Proper installation and maintenance of fiber cabling is imperative for minimizing network downtime. Whether you require basic fiber verification capabilities, advanced troubleshooting and inspection, or documented loss and power measurements, Fluke Networks’ SimpliFiber® Pro Optical Power Meter and Fiber Test Kits are the best first-line fiber instruments to meet your needs. SimpliFiber® Pro Optical Power Meter and Fiber Test Kits include all the tools necessary to verify and troubleshoot optical fiber cabling systems, measure loss and power levels, and inspect and clean connector end-faces. Replacing the popular SimpliFiber series, these next generation optical loss test kits boast industry-leading functions such as dual-wavelength testing and automatic-wavelength detection, in addition to unique features such as CheckActive™, FindFiber™, and Min/Max. With such advanced, yet easy-to-use, capabilities that reduce test times, SimpliFiber Pro is simply the best first-line fiber test kit on the market.

Documentation & Downloads

Specifications

Singlemode Optical Source

Emitter Type	1490 nm/1625 nm: dual DFB laser \|\| 1310 nm/1550 nm: dual FP laser
Wavelength Accuracy	1550 nm: +/- 30 nm \|\| 1310 nm: +/- 20 nm
Minimum output power	1490 nm/1625 nm: ≥ -3 dBm (typical) \|\| 1310/1550 nm ≥ -7dBm (typical)
Auto Dual-Wavelength Switching	Yes. Can be enabled or disabled by user.
Launch Condition	9/125 μm fiber
Battery Life2	30 hrs (typical)
Low Battery Warning	LED blinks.

Central wavelength	1550 nm: ±30 nm \|\| 1490 nm: ±3 nm \|\| 1310 nm: ±20 nm \|\| 1625 nm: ±5 nm
Spectral width (RMS)	1550 nm: 3 nm (maximum) \|\| 1310 nm: 2 nm (maximum) \|\| 1490 nm/1625 nm: 1 nm (maximum)
Power Output Stability1	±0.25 dB over 8 hours
Optical Connector	Fixed SC
FindFiber Code Generation	1490 nm/1625 nm is fixed at ID 3. \|\| 1310/1550 source is fixed at ID 2
Automatic Power Off	30 minutes (can be enabled or disabled by user)
Weight	9.8 oz (278 grams)

FindFiber Source Specifications

Emitter Type	Laser
FindFiber Code Generation	1 through 8. Default is 3.
Battery Life	> 80 Hours (typical)
Low Battery Warning	LED blinks
Weight	4.4 oz (125 g)

Source Connector	Fixed SC
Power On/Low-battery Indicator	LED
Automatic Power Off	30 minutes
Size (L x W x H)	7.1 in x 1.3 in x 1.0 in (17.9 cm x 3.2 cm x 2.5 cm)
Safety	Meets Class 1 CDRH

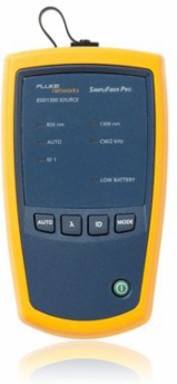

Multimode Optical Source

Emitter Type	LED
Wavelength Accuracy	1300 nm: +/- 20 nm \|\| 850 nm: +/-30 nm
Minimum Output Power	850/1300 nm: ³ -20 dBm
Auto Dual-Wavelength Switching	Yes. Can be enabled/disabled by user.
FindFiber Code Generation	Yes. Fixed at ID 1.
Power Requirement	2 AA Alkaline batteries.
Automatic Power Off	30 minutes (can be disabled by user)
Size (L x W x H)	5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm)

Central Wavelength	850 nm, 1300 nm
Spectral Width (FWHM)	850 nm: 50 nm (typical) \|\| 1300 nm: 135 nm (typical)
Power Output Stability1	±0.1 dB over 8 hours
Optical Output Connector	Fixed SC
Modes	CW, 2 kHz modulated, Auto-wavelength
Battery Life2	40 hrs (typical)
Low Battery Warning	Yes, LED blinks
Weight	1.8 oz (278 g)

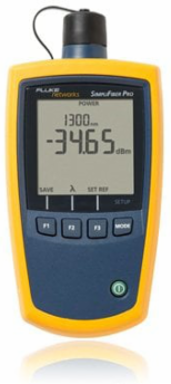

Optical Power Meter

Detector Type	InGaAs
Measurement Range	+10 to -52 dBm (850 nm) \|\| +10 to -60 dBm (1300, 1310, 1490, 1550, 1625 nm)
Power Measurement Uncertainty3	±0.25 dB
Auto Dual-Wavelength Switching	Yes
Auto-Wavelength Detection	Yes
External Interface	USB, 2.0 full speed
Display update rate	1 reading per second
FindFiber ID detection	Yes
Battery Life4	> 50 Hours (typical)
Low Battery Warning	Yes, low battery icon blinks
Weight	11.5 oz (325 grams)

Calibrated Wavelengths	850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
Power Measurement Linearity	±0.2 dB (850 nm) \|\| ±0.1 dB (1300, 1310, 1490, 1550, 1625 nm)
Display Resolution, dB or dBm	0.01 dB
Power Display Units	dBm, mW, μW
Data Storage	1000 records, multiple wavelengths per record
Optical Connector	Removable adapter, SC adapter as default, optional adapters include LC, ST
Reference	Individually set for each wavelength
Power Requirement	2 AA Alkaline batteries
Automatic Power Off	10, 20, 30 or 60 minutes (can be disabled by user)
Size (L x W x H)	6.4 in x 3.2 in x 1.5 in (16.5 cm x 8.0.cm x 3.9 cm)

Environmental Specifications

Operating Temperature	-10º C to 50º C
Operating Humidity	95% (10º C to 35º C) Non-Condensing75% (35º C to 40º C) Non-CondensingUncontrolled <10º C
