Fluke MFTK-SM1310 MultiFiber™ Pro Optical Power Meter and Fiber Test Kits

MPN: MFTK-SM1310
UPC: 754082111573
PPN: FLU-MFTK-SM1310

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

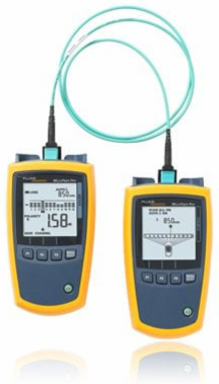

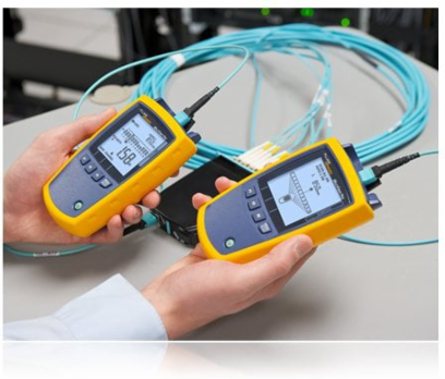

Introducing the MultiFiber™ Pro Optical Power Meter and Fiber Test Kits. MultiFiber Pro Optical Power Meter and Source is the first fiber tester that can certify MPO fiber trunks without the use of fan-out cords. This single mode and multimode MPO fiber testing kit eliminates the complexity of polarity issues, and it makes cassettes easier to test in the field. Whether using 10 Gbps preterminated MPO fiber trunks or planning for next-generation 40/100 Gbps Ethernet performance, data centers are standardizing on an MPO connector solution. Typical data center fiber installation means time-consuming, manual, and imprecise MPO validation. MultiFiber Pro Optical Power Meter and Source is 90 percent faster than single fiber cable certification because it measures power loss and validates polarity on 12 fibers in a single connector — reducing test time from weeks to days.

Documentation & Downloads

Specifications

Key Specifications

Modes	2 kHz modulated, auto wavelength
Weight	11.4 oz (323 g)

Battery life6	>30 hours (typical)

Sources

Emitter type	Laser \|\| LED
Spectral width (FWHM)	50 nm (typical) \|\| 2 nm typical, 5 nm maximum
Power output stability	±0.25 dB over 8 hours5 \|\| ≤±0.1 dB over 8 hours4
Encircled flux	NA \|\| Meets TIA 455-526-14B, ISO/IEC 14763-3, and IEC 61280-4-1 for 50/125 µm at the source’s optical connector.

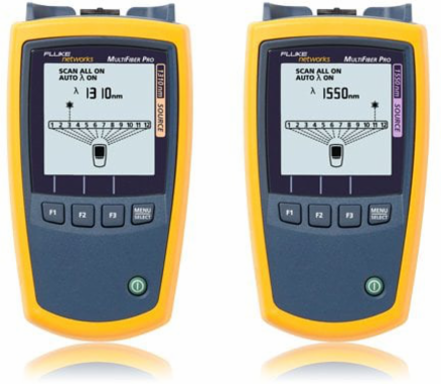

Wavelength	1310 nm ±20 nm \|\| 1550 nm ±20 nm \|\| 850 nm ±30 nm
Minimum output power	≥ -1 dBm \|\| ≥ -24 dBm
Laser safety	IEC 60825-1:Class 1
Optical connector	MTP/MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm and 50 µm fibers, non-APC only. Connector has a self-closing, protective cover. \|\| MTP/MPO interface for 12-fiber, unpinned plugs. Compatible with 9 µm fibers, APC only. Connector has a self-closing, protective cover.

Optical Power Meter (Specifications apply at 23ºC (73ºF), unless otherwise noted.)

Detector type	InGaAs
Measurement range	0 dBm to -50 dBm
Power measurement uncertainty	±0.35 dB
Display resolution, dB or dBm	0.01
User-selectable limit for loss	0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0dB

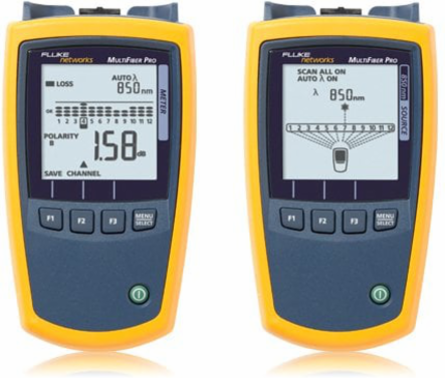

Polarity detection	Detects A, B, C, and Corning Plug & Play™ Universal Systems polarities
Record storage	3000 records, one fiber per record (250 12-fiber cables)

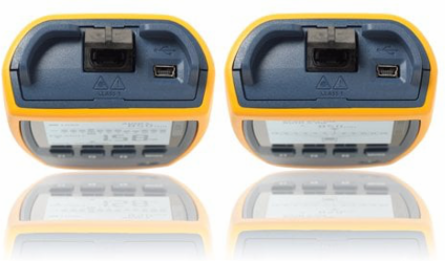

Optical connector	MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm, 50 µm, and singlemode fibers. Connector has a self-closing, protective cover.
Battery life3	30 hours (typical)
Low battery warning	Low battery icon blinks
Weight	10.9 oz (309 g)

Calibrated wavelengths	850 nm, 1300 nm, 1310 nm, 1550 nm
Test time Power measurement linearity	6 seconds±0.1 dB \|\| Power measurement linearity
Power measurement repeatability	< 0.10 dB
Power display units	dBm, mW, µW
Auto wavelength detection	Yes
2 kHz detection	Yes
External interface	USB 2.0, full speed
Power requirement	2 AA alkaline batteries
Automatic power-off	10, 20, 30, or 60 minutes (can be disabled by the user)
Size	5.8 in x 3.2 in x 1.6 in (14.7 cm x 8.0 cm x 4.0 cm)

Environmental

Operating temperature	-10ºC to +50ºC
Operating humidity	95% (10ºC to +35ºC) non-condensing75% (35ºC to +45ºC) non-condensingUncontrolled <10ºC
Storage altitude	12,000 m
