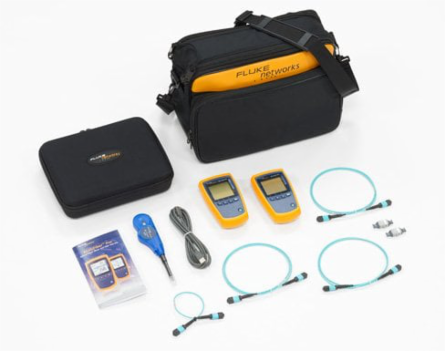

Fluke MFTK1200 MultiFiber™ Pro Optical Power Meter and Fiber Test Kits
- MPN: MFTK1200
- UPC: 754082092742
- PPN: FLU-MFTK1200
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

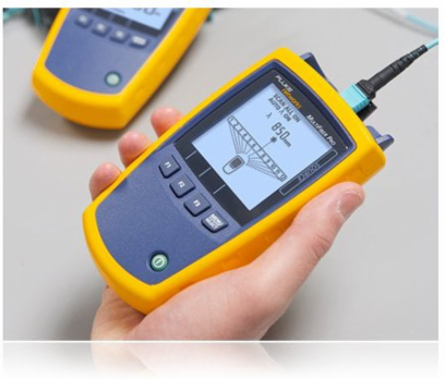

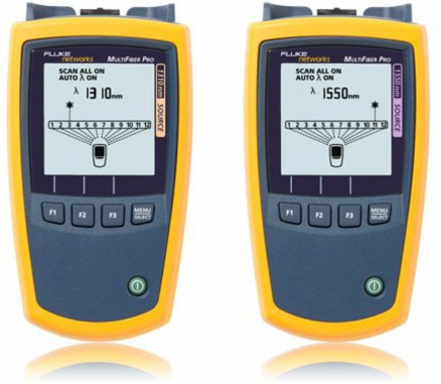

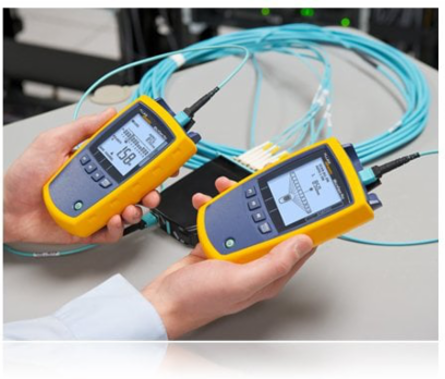

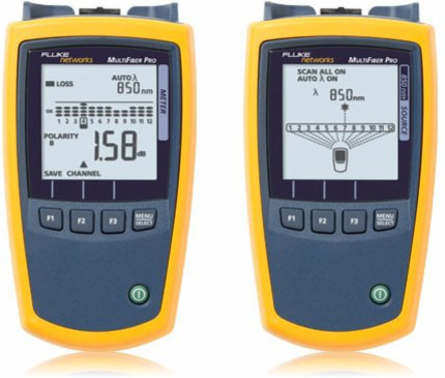

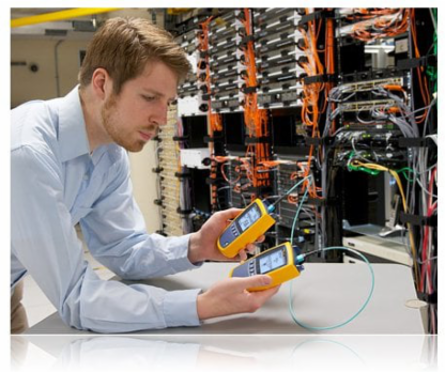

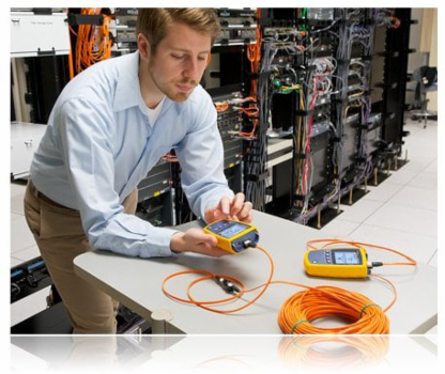

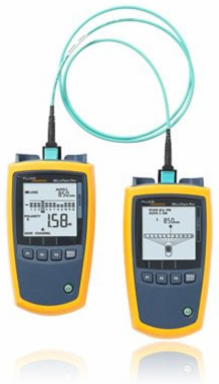

Introducing the MultiFiber™ Pro Optical Power Meter and Fiber Test Kits. MultiFiber Pro Optical Power Meter and Source is the first fiber tester that can certify MPO fiber trunks without the use of fan-out cords. This single mode and multimode MPO fiber testing kit eliminates the complexity of polarity issues, and it makes cassettes easier to test in the field. Whether using 10 Gbps preterminated MPO fiber trunks or planning for next-generation 40/100 Gbps Ethernet performance, data centers are standardizing on an MPO connector solution. Typical data center fiber installation means time-consuming, manual, and imprecise MPO validation. MultiFiber Pro Optical Power Meter and Source is 90 percent faster than single fiber cable certification because it measures power loss and validates polarity on 12 fibers in a single connector — reducing test time from weeks to days.
Documentation & Downloads
Specifications
Key Specifications
- Modes
- 2 kHz modulated, auto wavelength
- Weight
- 11.4 oz (323 g)
Battery life6>30 hours (typical)
Optical Power Meter (Specifications apply at 23ºC (73ºF), unless otherwise noted.)
- Detector type
- InGaAs
- Measurement range
- 0 dBm to -50 dBm
- Power measurement uncertainty
- ±0.35 dB
- Display resolution, dB or dBm
- 0.01
- User-selectable limit for loss
- 0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0dB
- Polarity detection
- Detects A, B, C, and Corning Plug & Play™ Universal Systems polarities
- Record storage
- 3000 records, one fiber per record (250 12-fiber cables)
- Optical connector

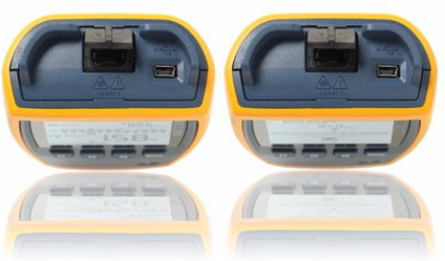

- MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm, 50 µm, and singlemode fibers. Connector has a self-closing, protective cover.
- Battery life3
- 30 hours (typical)
- Low battery warning
- Low battery icon blinks
- Weight
- 10.9 oz (309 g)
Calibrated wavelengths850 nm, 1300 nm, 1310 nm, 1550 nm
Test time Power measurement linearity6 seconds±0.1 dB || Power measurement linearity
Power measurement repeatability< 0.10 dB
Power display unitsdBm, mW, µW
Auto wavelength detectionYes
2 kHz detectionYes
External interfaceUSB 2.0, full speed
Power requirement2 AA alkaline batteries
Automatic power-off10, 20, 30, or 60 minutes (can be disabled by the user)
Size5.8 in x 3.2 in x 1.6 in (14.7 cm x 8.0 cm x 4.0 cm)
Sources
- Emitter type
- Laser || LED
- Spectral width (FWHM)
- 50 nm (typical) || 2 nm typical, 5 nm maximum
- Power output stability
- ±0.25 dB over 8 hours5 || ≤±0.1 dB over 8 hours4
- Encircled flux
- NA || Meets TIA 455-526-14B, ISO/IEC 14763-3, and IEC 61280-4-1 for 50/125 µm at the source’s optical connector.
Wavelength1310 nm ±20 nm || 1550 nm ±20 nm || 850 nm ±30 nm
Minimum output power≥ -1 dBm || ≥ -24 dBm
Laser safetyIEC 60825-1:Class 1
Optical connectorMTP/MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm and 50 µm fibers, non-APC only. Connector has a self-closing, protective cover. || MTP/MPO interface for 12-fiber, unpinned plugs. Compatible with 9 µm fibers, APC only. Connector has a self-closing, protective cover.
Environmental
- Operating temperature
- -10ºC to +50ºC
- Operating humidity
- 95% (10ºC to +35ºC) non-condensing75% (35ºC to +45ºC) non-condensingUncontrolled <10ºC
- Storage altitude
- 12,000 m
Storage temperature-20ºC to +50ºC
Operating altitude4,000 m
VibrationRandom 2 G, 5 Hz to 500 Hz
