Hubbell 2104LU Single Gang Device Box 2-1/2 Inch Deep, 12.5 Cu. In., CSA Certified, Gray
Hubbell 2104LU Single Gang Device Box 2-1/2 Inch Deep, 12.5 Cu. In., CSA Certified, Gray
- MPN: 2104LU
- UPC: 626463020852
- PPN: HBL-2104LU
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$4.74/ EA
Description
Single Gang Device Box 2-1/2 Inch Deep, 12.5 Cu. In., CSA Certified, Gray
Features

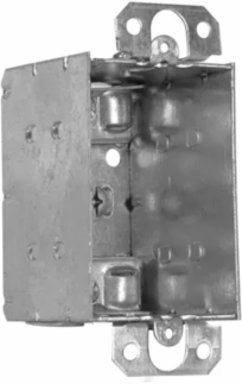

- The Hubbell Iberville 2104LU is a single-gang metallic electrical box used to house switches, receptacles, or other wiring devices. It is a "welded" unit, providing a rigid and stable enclosure for electrical connections within wall cavities.
- This box features a 2-1/2 inch depth and a 12.5 cubic inch capacity. This is the industry-standard depth for most residential and commercial rough-in applications, providing sufficient room for standard devices and the associated wire connectors.
- The "LU" suffix indicates that the box is equipped with Universal Cable Clamps. These internal clamps are factory-installed and certified to secure both non-metallic sheathed cable (NMD90/Loomex) and armored cable (AC90/BX), offering maximum flexibility on the job site.
- The 2104LU is gangable, meaning you can remove the side plates by loosening a screw and link multiple boxes together to create 2-gang, 3-gang, or larger configurations. This allows you to build custom-sized enclosures without needing to stock multiple different box sizes.
- Manufactured from pre-galvanized high-strength steel, this box provides a non-combustible barrier and superior mechanical protection. It is designed to withstand the impact of drywall installation and protects your wiring from accidental punctures by screws or nails.
Specifications
- Size
- Single Gang
- Volume
- 12.5 Cu. In.
- Raised Ground
- Yes
- Wiring System
- NMD90, AC90
- Weight
- 0.47 lb
Depth2.5 in
MaterialSteel
Cable EntryUniversal Cable Clamps
ComplianceCSA Certified
