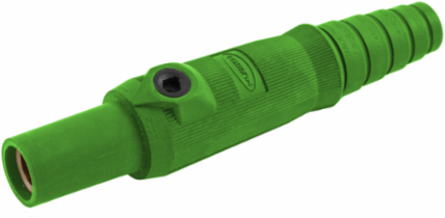

Bryant HBL15FGN Female Plug 150 Amp, Indoor Use, Green, 1-Pole, 600V AC/DC
Bryant HBL15FGN Female Plug 150 Amp, Indoor Use, Green, 1-Pole, 600V AC/DC
- MPN: HBL15FGN
- UPC: 783585458410
- PPN: HBL-HBL15FGN
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$41.11/ EA
Description
Single Pole Products, Female Plug, 150 Amp Series, Green
Features
- Extra Long non-conductive inner sleeve
- Turn and Lock Symbol aids in the mating of devices
- Easily Identifiable Cable with cut off points for secure fit
- Standard Product
Specifications
Specifications
- Country of Origin
- CN
- Width
- 1.860 in
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Amperage Rating
- 150 A
- Color
- Green
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- Non-NEMA
- Number of Poles
- 1-Pole
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Type
- Plugs
- Connectivity
- Set Screw
- Nema Rating
- Non-NEMA
- Number Of Poles
- 1-Pole
- Description - Invoice
- SINGLE POLE SER. 15 FEM PLUG, 150A, GN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 150 A
- Series
- 15 Series
- BOX SIZE
- 5.100x9.600x9.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585458410
- Case Weight
- 4.850 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.900 in
- Pallet Weight
- 873.000 lb.
Current / Amperage Rating150 A
Each - Width1.860 in
PerformanceElectrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG
ApplicationTemporary Electrical Power
Conductor Range#8 AWG to #2 AWG SC/PPC Wire
InsulationInsulated Body
Number of Conductors1 Conductor
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating Description600V AC/DC
Display SizeStandard
Number Of Conductors1 Conductor
StyleFemale
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareCord Mounted
MaterialBrass and Non-Metallic
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585458419
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
