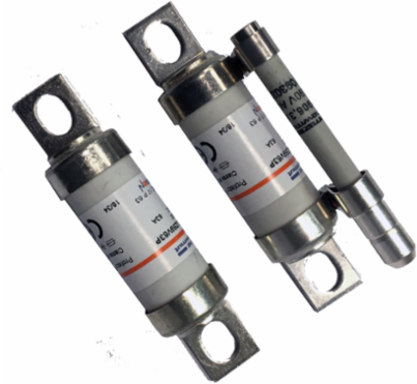

Mersen P221250 British Standard fuse-link Protistor® 17x49 aR 690VAC IEC 50A
- MPN: P221250
- PPN: FER-P221250
CAD
$133.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The 690V Protistor® BS88-4 fuse-links provide maximum flexibility in equipment design and ultimate protection for protection of power semiconductors.These fuse-links are defined as per IEC 60269-1 and -4 , VDE 636-23 and BS88-4 for a worldwide acceptance.The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Key Specifications
- Rated voltage AC UL
- 700 V
- Ampere Rating
- 50 A
- AC or DC
- AC
- Fuse Size
- 17x49
- Clearing I2t At Rated Voltage
- 970 A²s
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Connection/Terminal Type
- L Brackets
- Power Dissipation at Rated Current Value
- 17 W
- Weight
- 0.077 lb
Rated voltage AC IEC690 V
ROHS CompliantYes
Speed/CharacteristicaR
MountingBolted
Melting I2t155 A²s
Connection/Terminal MaterialCopper
Body/Insulating MaterialCeramic
Length3.04 in
