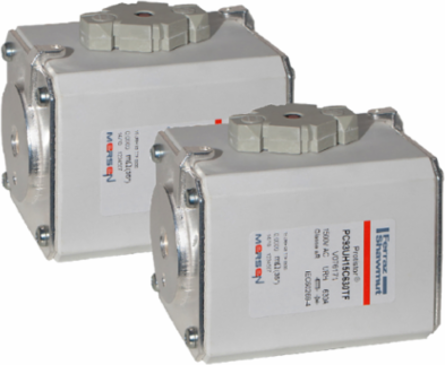

Mersen L097829 Protistor® Size 93 aR Fuse-Links 1500V 230A Ceramic End Contacts
Mersen L097829 Protistor® Size 93 aR Fuse-Links 1500V 230A Ceramic End Contacts
- MPN: L097829
- UPC: 3605340149111
- PPN: FER-L097829
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4716.34/ EA
Description
Mersen 1500 V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These square body fuse-links are available in three different body sizes, each size having four worldwide acceptable mounting styles. The different mounting styles and body sizes along with a broad range of ampere ratings allow greatest flexibility in equipment design. The Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR’s, diodes, thyristors, GTO’s and IGBT devices. They have pure silver die-cut elements embedded in solidified sand which helps control arcing characteristics for low I²t and high breaking capacity. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly on to the fuse even while in service.
Specifications
Specifications
- Rated voltage AC IEC
- 1500 V
- AC or DC
- AC
- Fuse Size
- 93
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Brass
- Body/Insulating Material
- Ceramic
- Length
- 3.98 in
- Weight
- 3.578 lb
Ampere Rating230 A
Speed/CharacteristicaR
MountingBolted
Design DetailsURF
Indication System TypeStriker
Connection/Terminal TypeFlush ends
Width2.93 in
Height3.37 in
