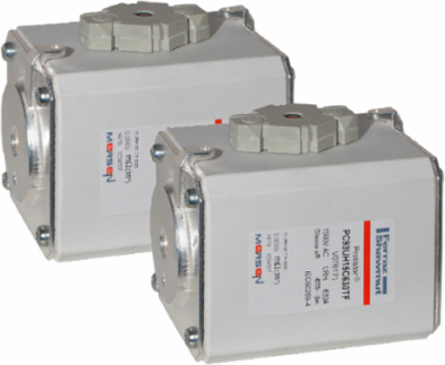

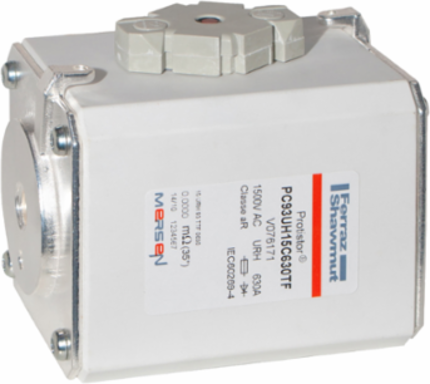

Mersen V076171 Protistor® 93 aR Fuse 1500V 630A Bolted End Contact
Mersen V076171 Protistor® 93 aR Fuse 1500V 630A Bolted End Contact
- MPN: V076171
- UPC: 3605340015324
- PPN: FER-V076171
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4888.44/ EA
Description
Mersen 1500 V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These square body fuse-links are available in three different body sizes, each size having four worldwide acceptable mounting styles. The different mounting styles and body sizes along with a broad range of ampere ratings allow greatest flexibility in equipment design. The Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR’s, diodes, thyristors, GTO’s and IGBT devices. They have pure silver die-cut elements embedded in solidified sand which helps control arcing characteristics for low I²t and high breaking capacity. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly on to the fuse even while in service.
Features
- Extremely fast acting
- Current limiting
- Very low l²t
- Worldwide acceptability
- Superior cycling ability
- Choice of mounting styles
- Broad range of ampere rating
Specifications
Specifications
- Ampere Rating
- 630 A
- Ac Max I R Breaking Capacity I1
- 200 kA
- Power Dissipation At Rated Current Value
- 125 W
- Product Line
- Protistor® size 93 aR , 1500VAC
- Body Insulating Material
- Ceramic
- Connection Terminal Type
- End Contact with Threaded Holes
- Speed Characteristic
- aR
Rated Voltage Ac Iec1500 V
Clearing I2T At Rated Voltage1570 kA²s
Country Of OriginFR
Product BrandProtistor®
Connection Terminal MaterialSilver-Plated Brass
Fuse Size93
MountingBolted
Downloads
