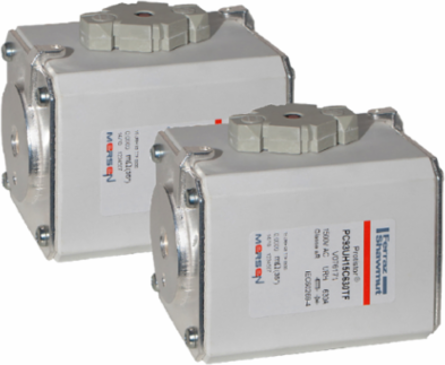

Mersen T076170 Protistor® Size 93 aR 1500VAC Fuse 500 A 200 kA Breaking Capacity
Mersen T076170 Protistor® Size 93 aR 1500VAC Fuse 500 A 200 kA Breaking Capacity
- MPN: T076170
- UPC: 3605340015317
- PPN: FER-T076170
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4370.51/ EA
Description
Mersen 1500 V PSC fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment. These square body fuse-links are available in three different body sizes, each size having four worldwide acceptable mounting styles. The different mounting styles and body sizes along with a broad range of ampere ratings allow greatest flexibility in equipment design. The Mersen PSC fuses have been engineered to provide state-of-the-art protection for SCR’s, diodes, thyristors, GTO’s and IGBT devices. They have pure silver die-cut elements embedded in solidified sand which helps control arcing characteristics for low I²t and high breaking capacity. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse links are equipped with a low voltage trip-indicator. This trip-indicator can operate a field mountable microswitch which is easily mounted directly on to the fuse even while in service.
Specifications
Specifications
- Rated voltage AC IEC
- 1500 V
- AC or DC
- AC
- Fuse Size
- 93
- Clearing I2t At Rated Voltage
- 375 kA²s
- Design Details
- URK
- Indication System Type
- Striker
- Connection/Terminal Type
- Flush ends
- Power Dissipation at Rated Current Value
- 158 W
- Length
- 3.98 in
- Weight
- 3.578 lb
Ampere Rating500 A
Speed/CharacteristicaR
MountingBolted
AC Max I.R./Breaking Capacity: I1200 kA
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Brass
Body/Insulating MaterialCeramic
Width2.93 in
Height3.37 in
