Leviton

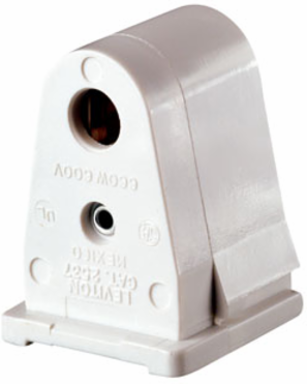

Leviton 2537 Slimline Base, Single Pin, Standard Fluorescent Lampholder, Pedestal, Slide-On Lock-On, Stationary, Quickwire 18AWG Solid or Str Tinned - White

Slimline Base, Single Pin, Standard Fluorescent Lampholder, Pedestal, Slide-On Lock-On, Stationary, Quickwire 18AWG Solid or Str Tinned - White
  • MPN: 2537
  • UPC: 078477775271
  • PPN: LEV-2537

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4.34/ EA

Description

Slimline Base, Single Pin, Standard Fluorescent Lampholder, Pedestal, Slide-On Lock-On, Stationary, Quickwire 18AWG Solid or Str Tinned - White

Specifications

Product Features

Lamp Base
Slimline
Lampholder Type
Linear
Rated Wattage
660W
Style Name
Pedestal
Warranty
1 Year Limited
Lamp ContactsSingle Pin
Light TypeFluorescent
Standards and CertificationsUL/CSA/NOM
Voltage600 Volt

Mechanical Specifications

Availability
Distribution
Color
White
Contact Type
Stationary
Panel Thickness
20 Ga. Panel
Wire Strip Length
3/8 - 5/8 Inch
Body MaterialThermoset
Contact MaterialCopper-Alloy
Mounting TypeSlide-On Lock-On
TerminationQuickwire 18AWG Solid or Str. Tinned

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Standards and Certifications

CSA Certified
File LR-1863
UL Listed
File E5833
NOM Certified057
UL RatedIndoor/Outdoor when properly enclosed.
