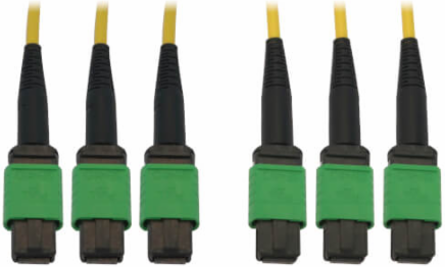

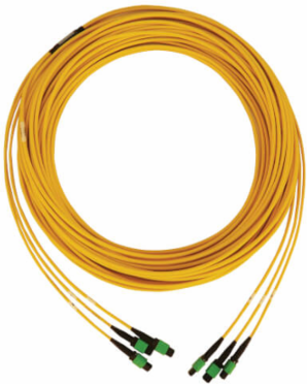

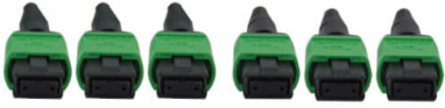

Tripp Lite N392B30M3X8AP Fiber Optic Cable, 3x8F MTP/MPO APC F/F, Singlemode 9/125 OS2, 40/100G, LSZH, Yellow, 30 m
- MPN: N392B30M3X8AP
- UPC: 037332272201
- PPN: TRP-N392B-30M-3X8AP
CAD
$1399.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100G Singlemode 9/125 OS2 Fiber Optic Cable (3x8F MTP/MPO-APC F/F), LSZH, Yellow, 30 m (98 ft.)
Documentation & Downloads
Specifications
Dimensions
- Technology
- Fiber; Singlemode
- Side B - Connector 1
- (3) 8F MPO (FEMALE)
- Number of Fibers
- 24
- Core Diameter
- 9.0
- Minimum Bend Radius
- 20 mm (Dynamic); 10 mm (Static)
Side A - Connector 1(3) 8F MPO (FEMALE)
Cable Length30M (98.4 ft)
Clad Diameter125.0
Primary Coating Diameter245.0
Performance
- Network Compatibility
- 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 1550NM
- 0.3 dB/km
- Storage Temperature Range
- -4° to 140°F (-20° to 60°C)
Attenuation @ 1310NM0.4 dB/km
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Relative Humidity5% to 85% RH, Non-Condensing
Material
- Endface Polish
- APC
- Connector Color
- Green; Black
- Push/Pull Tabs
- Yes
Cable Jacket ColorYellow
Cable Jacket MaterialLSZH
Reference
- Product Warranty Period
- Lifetime limited warranty
