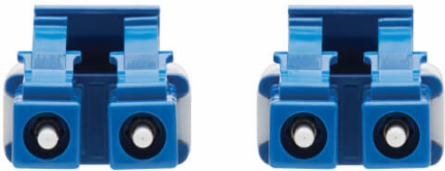

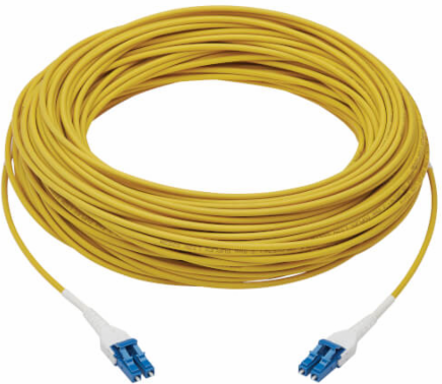

Tripp Lite N370100MAR Armored Fiber Optic Cable, 100G Duplex Singlemode 9/125 OS2, LC/LC, LSZH, Yellow, 100 m
- MPN: N370100MAR
- UPC: 037332264343
- PPN: TRP-N370-100M-AR
CAD
$354.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
100G Duplex Singlemode 9/125 OS2 Armored Fiber Optic Cable (LC/LC Duplex M/M), LSZH, Yellow, 100 m (328 ft.)
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 100 m (328.1 ft) |
|---|---|
| Number of Fibers | 2 |
| Clad Diameter | 125 um |
| Cable Outer Diameter | 3.0 mm |
| Optical Port | LC |
|---|---|
| Core Diameter | 9 um |
| Primary Coating Diameter | 550 um |
| Minimum Bend Radius | ≤30 mm |
Material
| Technology | Singlemode |
|---|---|
| Armored Cable | Yes |
| Cable Jacket Material | LSZH |
| Cable Jacket Color | Yellow |
| Endface Polish | UPC |
|---|---|
| Material of Construction | Outer Jacket: PVC (LSZH Rating); Inner Flexible Steel Tube: SUS204 (Armored) |
| Cable Jacket Rating | OFNR |
| Connector Color | Blue; White |
Compliance
| Product Warranty Period | Lifetime limited warranty |
|---|
Performance
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 1310nm | 0.40 dB/km |
| Operating Temperature Range | -4 to 140F (-20 to 60C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Wavelength | 1310 nm; 1550 nm |
|---|---|
| Attenuation @ 1550nm | 0.30 dB/km |
| Storage Temperature Range | -4 to 140F (-20 to 60C) |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
