Tripp Lite N392B15M3X8AP Fiber Optic Cable, 3x8F MTP/MPO APC F/F, Singlemode 9/125 OS2, 40/100G, LSZH, Yellow, 15 m
- MPN: N392B15M3X8AP
- UPC: 037332272188
- PPN: TRP-N392B-15M-3X8AP
CAD
$1238.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

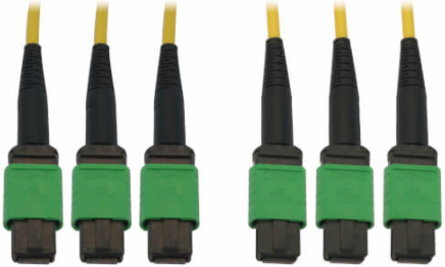

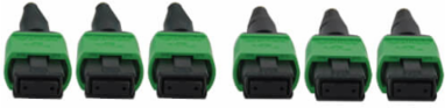

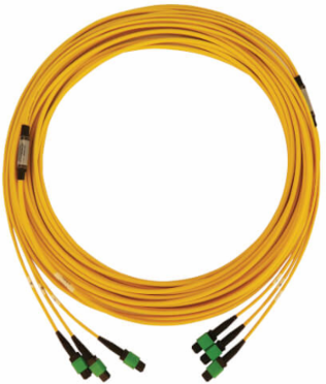

40/100G Singlemode 9/125 OS2 Fiber Optic Cable (3x8F MTP/MPO-APC F/F), LSZH, Yellow, 15 m (49 ft.)
Documentation & Downloads
Specifications
Dimensions
| Technology | Fiber; Singlemode |
|---|---|
| Side B - Connector 1 | (3) 8F MPO (FEMALE) |
| Number of Fibers | 24 |
| Core Diameter | 9.0 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Side A - Connector 1 | (3) 8F MPO (FEMALE) |
|---|---|
| Cable Length | 15M (49.2 ft) |
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 245.0 |
Performance
| Network Compatibility | 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 1550NM | 0.3 dB/km |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 1310NM | 0.4 dB/km |
|---|---|
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 5% to 85% RH, Non-Condensing |
Material
| Endface Polish | APC |
|---|---|
| Connector Color | Green; Black |
| Push/Pull Tabs | Yes |
| Cable Jacket Color | Yellow |
|---|---|
| Cable Jacket Material | LSZH |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
