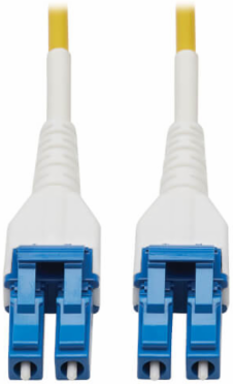

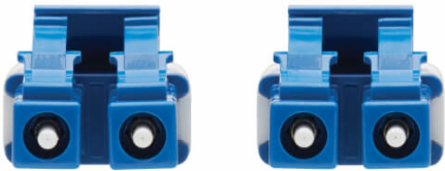

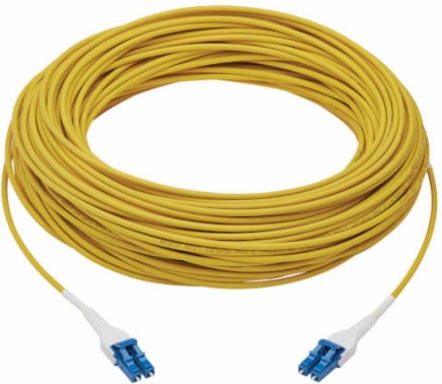

Tripp Lite N37050MAR Armored Fiber Optic Cable, 100G Duplex Singlemode 9/125 OS2, LC/LC, LSZH, Yellow, 50 m
- MPN: N37050MAR
- UPC: 037332264329
- PPN: TRP-N370-50M-AR
CAD
$200.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
100G Duplex Singlemode 9/125 OS2 Armored Fiber Optic Cable (LC/LC Duplex M/M), LSZH, Yellow, 50 m (164 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 50 m (164 ft)
- Number of Fibers
- 2
- Clad Diameter
- 125 um
- Cable Outer Diameter
- 3.0 mm
Optical PortLC
Core Diameter9 um
Primary Coating Diameter550 um
Minimum Bend Radius≤30 mm
Material
- Technology
- Singlemode
- Armored Cable
- Yes
- Cable Jacket Material
- LSZH
- Cable Jacket Color
- Yellow
Endface PolishUPC
Material of ConstructionOuter Jacket: PVC (LSZH Rating); Inner Flexible Steel Tube: SUS204 (Armored)
Cable Jacket RatingOFNR
Connector ColorBlue; White
Performance
- Network Compatibility
- 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 1310nm
- 0.40 dB/km
- Operating Temperature Range
- -4 to 140F (-20 to 60C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
Wavelength1310 nm; 1550 nm
Attenuation @ 1550nm0.30 dB/km
Storage Temperature Range-4 to 140F (-20 to 60C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Compliance
- Product Warranty Period
- Lifetime limited warranty
