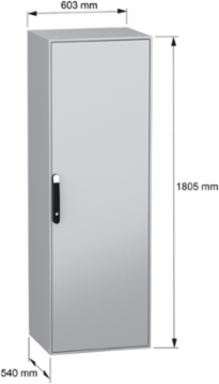

Schneider Electric NSYSM18650 PanelSeT SM Compact Steel Enclosure 1800x600x500 mm, IP55, IK10

MPN: NSYSM18650
PPN: SCH-NSYSM18650
UNSPSC: 39121324

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$2359.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

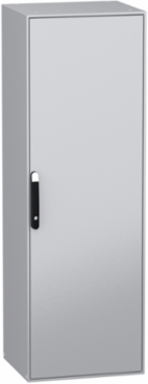

Spacial SM monobloc compact steel enclosure with plain front door. 1800 x 600 x 500 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.

Features

Electrical enclosure design that contains recycled steel made with renewable energy to face environmental challenges.
IEC and UL compliant industrial steel cabinet, making it sturdy, robust, and durable for maximum component protection.
Ergonomic design for convenience & time-saving operations.
Large choice of sizes and accessories to simplify mounting, to adapt any control panel and electrical panel requirement.
Reusable recycled cardboard packaging corners.
Quick-fixing system that pre-holds the plate before final screwing fixation, allowing the operation by only one person.
Ideal compact size for floor mount.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	77000 g

Physical Attributes

Color	enclosure Gray RAL 7035), handle Black RAL 9005)
Enclosure Nominal Width	600 mm

Enclosure Nominal Height	1800 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Body Type	front part forming a rigid frame with welded corners, single piece body with welded rear panel
Material	body sheet steel, door sheet steelhinge zamak
Certificate Agency	DNV, UL, BV
Carbon Footprint Of The End Of Life Phase C1 To C4	189 kg CO2 eq., 189.1571077964797
Carbon Footprint Of The Manufacturing Phase A1 To A3	173 kg CO2 eq., 172.52432772977576
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Coverage	Core product
Door Opening Side	reversible 120 °)
Energy Efficiency Optimized	False
Mounting Plate Description	without mounting plate
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	compact enclosure
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	526 kg CO2 eq.
Database Version	2024-01
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	89

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	1 body, 1 cable gland plate1 locking system with handle door4 mounting plate bracket, 1 door
Removable Parts	door by screws hinge, mounting plate bracket by screws
Carbon Footprint Of The Distribution Phase A4	152.59964201224776, 153 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	11.779052904787372, 12 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-07-15
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Cable Entry	1 entry
Device Application	multi-purpose
Door Type	Solid
Lock Type	4 points lock, handle with 5 mm double bar insert
Number Of Doors	front 1
Product Name	PanelSeT SM
Range	PanelSeT
Software Version	v6.2.2
Sustainable Packaging	No
Type Of Gland Plate	standard
Data Source	extrapolated product
Customs Code	9403200090
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Environmental Disclosure	ENVPEP2501030EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2501030EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	526.0601304432905
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-10
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
