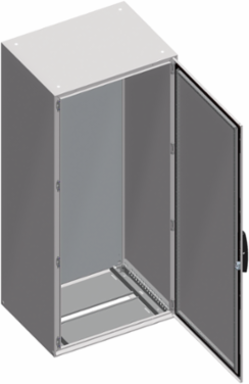

Spacial SM Compact Steel Enclosure 1800x600x500 mm, IP55, IK10, 109.713 kg
Schneider Electric

Schneider Electric NSYSM18650P Spacial SM Compact Steel Enclosure 1800x600x500 mm, IP55, IK10, 109.713 kg

  • MPN: NSYSM18650P
  • PPN: SCH-NSYSM18650P
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2864.77

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Spacial SM monobloc compact steel enclosure with plain front door. 1800 x 600 x 500 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

    Documentation & Downloads

    Specifications

    Key Specifications

    Removable Parts
    door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws
    Product Or Component Type
    compact enclosure
    Device Composition
    1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 mounting plate || 1 door

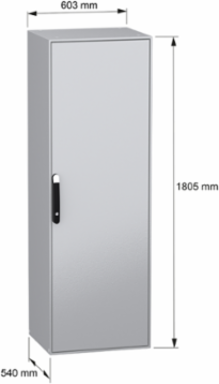

    Enclosure Nominal Depth
    500 mm
    Enclosure Nominal Width
    600 mm
    Installation Accessory Typefloor-standing
    Product NameSpacial SM
    Enclosure Nominal Height1800 mm
    Device Applicationmulti-purpose
    RangeSpacial

    Complementary

    Accessibility For Operation
    front
    Type Of Gland Plate
    standard
    Surface Finish
    epoxy-polyester powder
    Colour
    enclosure grey RAL 7035) || handle black RAL 9005)
    Door Type
    plain
    Door Opening Side
    reversible 120 °)
    Number Of Doors
    front 1
    Body Typefront part forming a rigid frame with welded corners || single piece body with welded rear panel
    Materialmounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak
    Cable Entry1 entry
    Lock Type4 points lock, handle with 5 mm double bar insert
    Net Weight109.713 kg
    Mounting Plate Descriptionplain

    Environment

    Product Certifications
    UL || BV || DNV
    Standards
    IEC 62208
    Ik Degree Of ProtectionIK10 IEC 62262
    Ip Degree Of ProtectionIP55 IEC 60529

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP110923EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold
