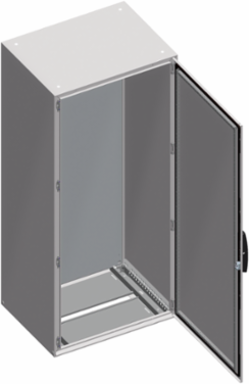

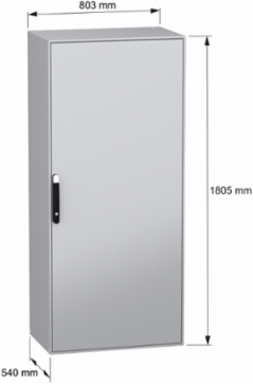

Schneider Electric NSYSM18850P Spacial SM Compact Steel Enclosure 1800x800x500 mm, IP55, IK10, 129 kg
- MPN: NSYSM18850P
- PPN: SCH-NSYSM18850P
CAD
$3241.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Spacial SM monobloc compact steel enclosure with plain front door. 1800 x 800 x 500 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel for mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.
Documentation & Downloads
Specifications
Key Specifications
- Removable Parts
- door by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws
- Product Or Component Type
- compact enclosure
- Device Composition
- 1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 mounting plate || 1 door
- Enclosure Nominal Depth
- 500 mm
- Enclosure Nominal Width
- 800 mm
Installation Accessory Typefloor-standing
Product NameSpacial SM
Enclosure Nominal Height1800 mm
Device Applicationmulti-purpose
RangeSpacial
Complementary
- Accessibility For Operation
- front
- Type Of Gland Plate
- standard
- Surface Finish
- epoxy-polyester powder
- Colour
- enclosure grey RAL 7035) || handle black RAL 9005)
- Door Type
- plain
- Door Opening Side
- reversible 120 °)
- Number Of Doors
- front 1
Body Typefront part forming a rigid frame with welded corners || single piece body with welded rear panel
Materialmounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak
Cable Entry1 entry
Lock Type4 points lock, handle with 5 mm double bar insert
Net Weight129 kg
Mounting Plate Descriptionplain
Environment
- Product Certifications
- UL || BV || DNV
- Standards
- IEC 62208
Ik Degree Of ProtectionIK10 IEC 62262
Ip Degree Of ProtectionIP55 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110923EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
