Balluff

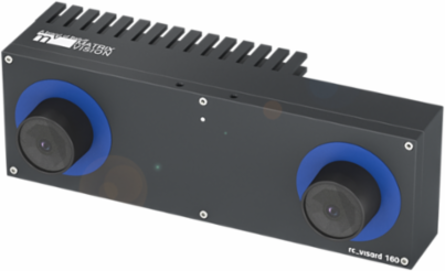

Balluff BVS 3D-RV0-0012VC-211100-001 Smart 3D Camera 4 mm Focal Length 1.2 MP Resolution

Smart 3D Camera 4 mm Focal Length 1.2 MP Resolution
  • MPN: BVS 3D-RV0-0012VC-211100-001
  • PPN: BAL-BVS004Y

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Specifications

Specifications

Country of Origin
Germany
Application
Bin Picking; Object detection; Gripping point calculation
Sensor type Vision
CMOS 1/3" color global shutter
Housing material
Aluminum, Painted
Interface
LAN (Gigabit Ethernet);GigE Vision 2.0;TCP/UDP
Connection 2
M12x1-Female, 8-pin, A-coded
Ambient temperature
0...50 °C
2D codesQR code; AprilTag
Image resolution1.2 MP(1280 x 960 pixels)
Focal length4 mm
Dimension230 x 75 x 84 mm
Connection 1M12x1-Male, 8-pin, A-coded
Operating voltage Ub18...30 VDC
IP ratingIP54

Downloads
