Digital Watchdog

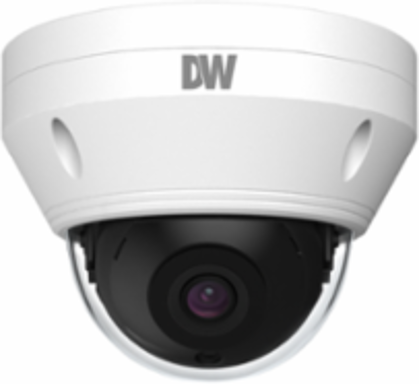

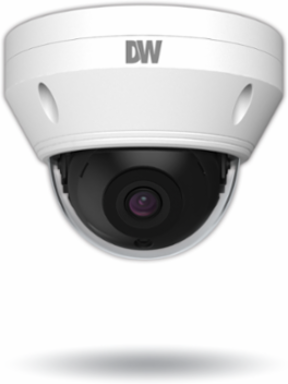

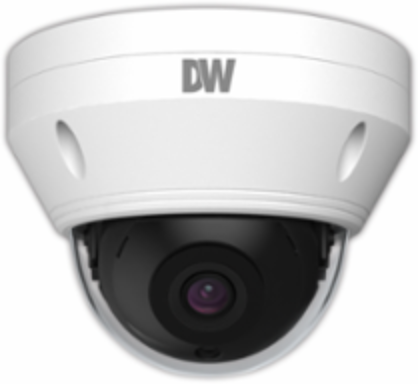

Digital Watchdog DWC-MV95Wi28TW MEGApix 5MP Vandal Dome IP Camera, 2.8mm Lens, IR, IP67, IK10

  • MPN: DWC-MV95Wi28TW
  • UPC: 812226034659
  • PPN: DWD-DWC-MV95Wi28TW

CAD

$575.41

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The MEGApix 5MP vandal dome IP camera from Digital Watchdog offers an exceptional blend of advanced surveillance technology and robust design, making it an ideal choice for security applications in various environments. With options for 2.8mm and 3.6mm fixed lenses, this camera delivers high-resolution video at real-time 30 frames per second, ensuring clear and detailed imagery. Its IK10-rated impact resistance and IP67 rating for dust and water protection provide peace of mind in challenging conditions, while features like Smart DNRTM for noise reduction and True Wide Dynamic Range (WDR) enhance image quality in diverse lighting situations. Equipped with intelligent video analytics, including line crossing and perimeter intrusion detection, this camera not only captures video but also actively monitors for security breaches, sending notifications via email or FTP server when necessary. The dual-stream capability allows for flexible bandwidth management, and the built-in microphone and audio output provide additional functionality for comprehensive surveillance. With a 5-year warranty and compliance with ONVIF standards, this camera is built for reliability and performance, making it a valuable addition to any security system.

Features

  • 5MP 1/2.7” image sensor at real-time 30fps
  • 2.8mm fixed lens (DWC-MV95Wi28TW)
  • 3.6mm fixed lens (DWC-MV95Wi36TW)
  • True Wide Dynamic Range (WDR)
  • Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
  • 100ft range Smart IR™
  • Object classification video analytics
  • Line crossing video analytics
  • Perimeter intrusion video analytics
  • Video tampering with scene change detection video analytics
  • Video tampering with video blur detection video analytics
  • Video tampering with abnormal color detection video analytics
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • De-Fog™ extreme weather image compensation
  • Auto white balance (AWB)
  • Motion detection
  • Audio input through built-in microphone
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • Alarm sensor input
  • Relay output
  • Web server built-in
  • PoE class 3 and DC12V
  • ONVIF conformant, profile S
  • NDAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty

Documentation & Downloads

Specifications

ENVIRONMENTAL

Operating temperature-22°F ~ 140°F (-30°C ~ 60°C)
IP ratingIP67-rated
Other certificationsCE, FCC, RoHS
Operating humidity95% RH (non–condensing)
IK ratingIK10 impact-resistant

MECHANICAL

MaterialMetal vandal housing, polycarbonate dome
Weight1.43 lb (0.65 kg)
Dimensions4.59" x 3.54" (116.6x 90 mm)
Warranty5 year warranty

ELECTRICAL

Power requirementDC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
Power consumption6W

OPERATIONAL

Shutter modeAuto, manual
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Camera analyticsLine crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
Memory slotMicro SD / SDHC / SDXC (card not Included)
Shutter speed1/30s ~ 1/100000s
Day / nightAuto, day (color), night (B/W), schedule
Wide dynamic range (WDR)True WDR low, middle, high
Privacy zone4 programmable privacy masks
Alarm notificationsNotifications via e-mail or FTP server

I/O

Audio in/out1 audio input, 1 microphone built-in /1 output
Alarm in/out1 input / 1 output
Audio compressionG.711A / U

LENS

Focal length2.8mm, F1.6 (DWC-MV94Wi28T), 3.6mm, F1.6 (DWC-MV94Wi36T)
Field of view (FoV)98.5° (DWC-MV94Wi28T), 81.4; ° (DWC-MV94Wi36T)
Lens typeFixed lens
IR distance100ft Range

NETWORK

LAN802.3 compliance 10/100 LAN
Frame rateUp to 30fps at all resolutions
Bitrate controlMulti-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
SecurityIP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
Web viewerOS - Windows® Browser - Internet Explorer
Video compression typeH.265. H.264, MJPEG
Video bitrate64 Kbps ~ 8 Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS


Image sensor5MP 1/2.7” CMOS
S/N ratio50dB
Total pixels2592(H) X 1944 (V)
