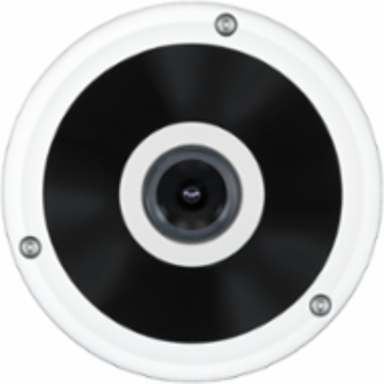

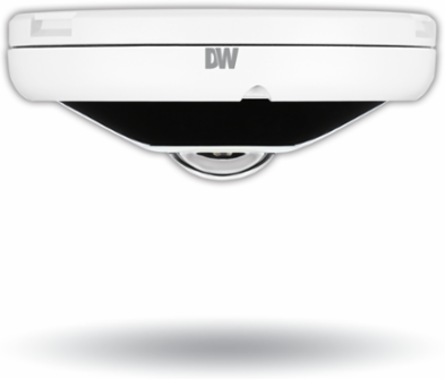

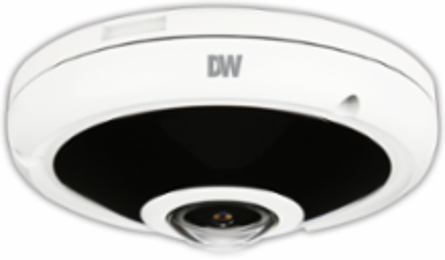

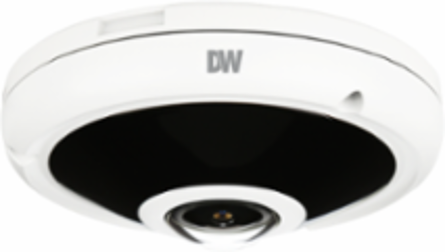

Digital Watchdog DWC-PVF5Di1TW MEGApix Pano IVA 5MP Fisheye IP Camera 1.5mm Lens, 185° FoV, IK9
- MPN: DWC-PVF5Di1TW
- UPC: 812226032303
- PPN: DWD-DWC-PVF5Di1TW
CAD
$1238.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience unparalleled surveillance capabilities with the MEGApix® Pano IVA™ 5MP vandal fisheye IP camera, designed by Digital Watchdog. This advanced camera features a 1.5mm fisheye lens that provides an expansive 185° field of view, ensuring comprehensive coverage for any environment. With its exceptional low-light performance, it captures vivid color images in near-total darkness, enhanced by infrared capabilities that reach up to 80 feet.
Built to withstand harsh conditions, the camera boasts an IK9 impact-resistant rating and an IP66 weatherproof rating, making it ideal for both indoor and outdoor applications. Its robust design is complemented by a host of features including programmable privacy zones, dual-streaming capabilities, and advanced video compression options like H.265 and H.264, ensuring efficient data management without compromising image quality. With a variety of operating protocols and a user-friendly setup, this camera is a reliable choice for any security system.
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP66-rated weather and tamper-resistant
- Other certifications
- FCC, CE, ROHS
Operating humidityLess than 90% (non-condensing)
IK ratingIK9 impact-resistant
MECHANICAL
- Material
- Aluminum vandal fisheye housing, polycarbonate dome
- Weight
- 1.1 lbs (0.5kg)
Dimensions4.9" x 1.88” (125 x 48mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not included)
Power consumptionDC12V - max 7.5W PoE - max 8.7W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- Off, x2, x3, x5, x6, x7.5, x10
- Day / night
- Auto, day (color), night (B/W)
- Backlight compensation (BLC)
- Yes
- Mirror and flip
- Yes
- Alarm notifications
- Notifications via e-mail, FTP server, alarm output activation or SD card recording
Shutter speed1/15 ~ 1/32,000sec
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
White balanceYes
Privacy zones16 programmable privacy masks
Memory slotMicro SD/SDHC/SDXC (card not included).
I/O
- Audio in / out
- 1 input (1.0Vms, 3K ohm) / 1 output
- Audio compression
- G.711
Alarm In/Out1 input / 1 output
LENS
- Focal length
- 1.5mm
- Field of view (FoV)
- 185°
Lens typeFisheye lens
IR distance80ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multistreaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- Security
- HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW)
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrate100Kbps ~ 10Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
ONVIF conformanceYes
- Image sensor
- 6.4MP 1/1.8" Star-Light Plus CMOS
- S/N ratio
- 50dB
Total pixels3096(H) X 2080(V)
Maximum resolution5MP (2592x 1944)
