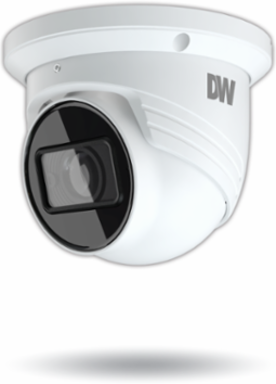

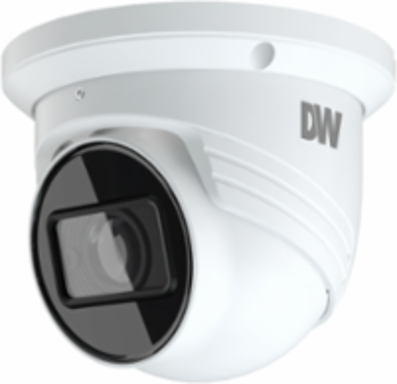

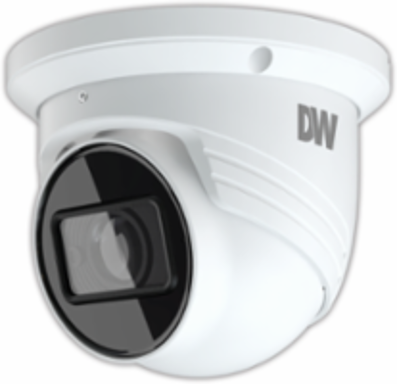

Digital Watchdog DWC-MT94WiAT MEGApix 4MP turret IP camera with 2.8~12mm vari-focal lens with motorized zoom and IR
Digital Watchdog DWC-MT94WiAT MEGApix 4MP turret IP camera with 2.8~12mm vari-focal lens with motorized zoom and IR
- MPN: DWC-MT94WiAT
- PPN: DWD-DWC-MT94WiAT
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$593.44/ EA
Description
These MEGApix® IP cameras deliver crystal-clear images at 4MP resolution and real-time 30fps. The IP67-rated turret camera features a 2.8~12mm vari-focal lens with motorized zoom and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features
- 4MP 1/3” image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog™ extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input and built-in microphone
- Micro SD class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- ONVIF conformant, profile S
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
Specifications
- Image sensor
- 4MP 1/3” CMOS
- S/N ratio
- ≧50dB
- Field of view (FoV)
- 94.2° ~ 29.8°
- Audio in/out
- 1 audio input, 1 microphone built-in
- Shutter mode
- Auto, manual
- Auto gain control
- Auto
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Wide dynamic range (WDR) dB
- 120dB
- Camera analytics
- Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
- LAN
- 802.3 compliance 10/100 LAN
- Resolution
- 4MP (2592×1520) at 30fps
- Video bitrate
- 64 Kbps ~ 8 Mbps
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
- ONVIF conformance
- Yes
- Video management software
- DW Spectrum® IPVMS
- Operating humidity
- 10–95% RH (non–condensing)
- Other certifications
- CE, FCC, RoHS
- Power consumption
- <9.5W
- Weight
- 1.47 lb (0.67 kg)
Total pixels2592 (H) X 1520 (V)
Lens typeVari-focal lens with motorized-zoom and auto-focus
IR distance164ft range
Audio compressionG.711A / U
Shutter speed1/30s ~ 1/100000s
Day / nightAuto, day (color), night (B/W), schedule
Wide dynamic range (WDR)True WDR low, middle, high
Privacy zone4 programmable privacy masks
Alarm notificationsNotifications via e-mail or FTP server
Video compression typeH.265. H.264, MJPEG
Frame rateUp to 30fps at all resolutions
Bitrate controlMulti-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
SecurityIP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
Web viewerOS - Windows® Browser - Internet Explorer
Operating temperature-22°F ~ 140°F (-30°C ~ 60°C)
IP ratingIP67-rated
Power requirementDC 12V, PoE IEEE 802.3af Class 3. (Adapter not included).
MaterialMetal turret housing
