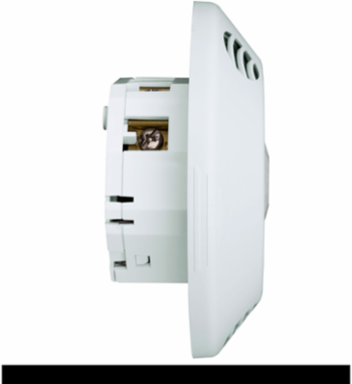

Smart Ceiling Mount Sensor (CMS), Dimming, Multi-Tech, 500 sq ft Coverage - https://images.province-electric.com/LEV-AC705-DMW/smart-room-controller-src-medium-alt-aoyr.webp

Documentation & Downloads

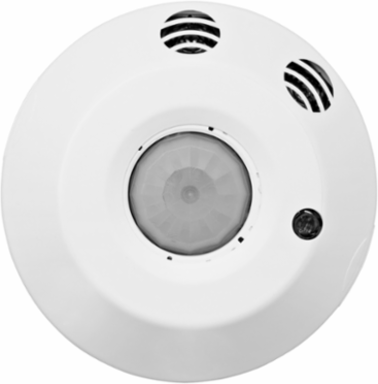

Leviton AC705-DMW Smart Ceiling Mount Sensor (CMS), Dimming, Multi-Tech, 500 sq ft Coverage

MPN: AC705-DMW
UPC: 078477355183
PPN: LEV-AC705-DMW

CAD

$358.16

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Smart Ceiling Mount Sensor, Multi-Tech, 0-10V dimming, 1-zone, 500 sq ft coverage, 120-277VAC

Features

Can be used to comply with IECC, ASHRAE 90.1. and 2022 Title 24, Part 6 requirements:
Occupancy/vacancy sensing
0-10V dimming
Daylight harvesting
Partial-ON, partial-OFF
Demand response
Plug load or receptacle control
Available in 450 to 2,000 square foot field-of-view units
All configuration is done using the Smart Sensor App
For larger spaces, additional Smart Ceiling Mount Sensors can be connected wirelessly to expand the FOV (up to 5 devices)
Passive infrared (PIR) and multi-tech (PIR + ultrasonic) models available
Manual area control available for 3-way/multi-way applications with the PLVSW Low Voltage Keypads or SBK00 Wireless Switch and Dimmer (must all be same style)
Manual control for independent dimming zones (dim primary and secondary daylighting zones up and down independently)
For dual relay models (ACY15-DIW and ACY20-DMW), two keypads can be connected for manual control of each relay/lighting zone
UL924 listed for emergency lighting:
Can be connected to BMS (Building Management System) or any contact closure to force the lights full ON in case of emergency
AutoCal feature—Digital Daylighting Level automatically calibrates photocell to specified lighting design
Simplified daylight harvesting control of primary and secondary daylighting zones with full range 0-10V dimming
Primary zone dimmed up and down from photocell
Secondary zone dimmed up and down with offset from primary zone
Two light pipes are included for both open (angled) and closed loop (flat and angled) daylight harvesting
The angled light pipe provides directional fine tuning and alignment to natural light source for closed loop applications
Includes two interchangeable lenses for 8-12’ mounting heights and 13-20’ mounting heights as well as aisleway masks
The Leviton exclusive Smart Ceiling Mount Sensor (CMS) offers high performance, code compliant, advanced room configuration in one easy-to-install device. Installers can download the Smart Sensor App for quick-and-easy room configuration with any iOS or Android device. The CMS's features meet advanced design requirements for standalone occupancy/vacancy sensing , dimming and daylight harvesting applications, offering easy configuration and operational testing for one or two 0-10V dimming zones, options for one or two daylight harvesting zones, partial-ON, partial-OFF, area control, demand response, plug load or receptacle control, and UL924 emergency lighting.
