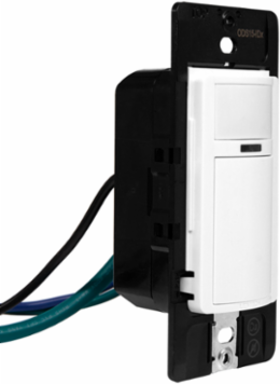

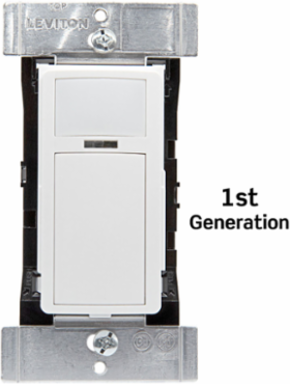

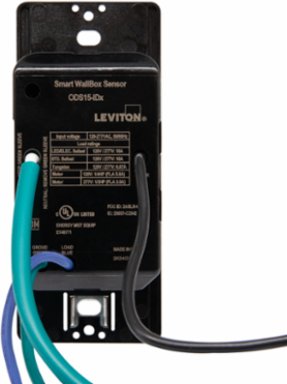

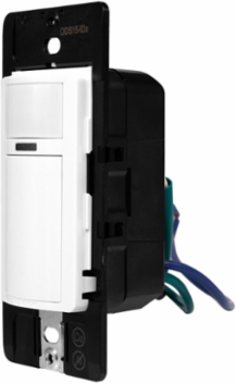

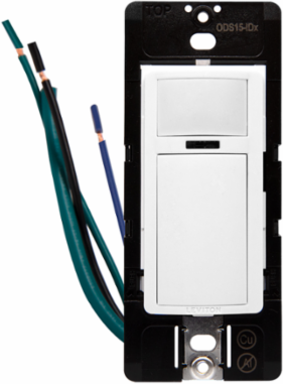

Leviton ODS15-IDW Smart Occupancy/Vacancy Sensor, 120-277VAC, 1000 Sq.Ft. Coverage, PIR, Wallbox
- MPN: ODS15-IDW
- UPC: 078477010228
- PPN: LEV-ODS15-IDW
CAD
$99.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart PIR Wallbox Sensor, App configurable; Auto-ON/Auto-OFF or Manual-ON/Auto-OFF, 120-277VAC, 50/60Hz; White. Wallplate sold separately
Features
- Can be used to comply with IECC, ASHRAE 90.1, and 2025 Title 24, Part 6 occupancy/vacancy sensing and manual control requirements
- Fits in a standard wallbox and gangable with other units
- Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
- One relay module for single-level switching
- 180° field-of-view provides approximately 1,100 square feet of coverage
- Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
- Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
- Adjust the sensitivity of the sensor to increase or decrease coverage area
- Adjust timeouts
- Activate the nightlight and select nightlight colors
- Add daylighting hold-off and select target daylighting levels
- Set a security code to lock configuration settings
- Out-of-the-box configuration default mode: Auto-ON/Auto-OFF with 10-minute time out
- Sensitivity set to 75%
- Nightlight and daylighting disabled
- The Leviton Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistent lens. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-Ixx ’s vacancy mode features a Manual-ON/Auto-OFF for installations where manual-ON switching is required for energy code applications. Configuration of ODS15-Ixx is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth® enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several popular preconfigured options. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- California Title 24
- Yes
- Testing and Code Compliance
- Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
ListingsIECC, UL and cUL listed, FCC, ICC
Performance Specifications
- Coverage (Sq.Ft.)
- 1000
Pattern180°
Mechanical Specifications
- IP Rating
- IP10
- Size
- Height 4.13" (104.9mm), Width 2.12" (53.95mm), Depth 1.53 " (38.862mm), Install Depth .95" (24.13mm)
Mounting TypeWall Switch
Switch TypeSingle-Pole
Product Features
- Application
- Small Offices|Lobbies|Small Meeting Rooms
- Feature
- App configurable
- Mounting
- Wall Switch
- Sensor Technology
- Passive Infrared (PIR)
ColorWhite
GradeCommercial
Product LineODS15
Sensor TypeOccupancy / Vacancy
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Storage Temperature Range
- -40° to 185°F (-40° to 85°C)
Electrical Specifications
- Frequency
- 50/60Hz
- Load Rating
- See Product Specification and Data Sheet
- Voltage
- 120-277 VAC
Input Current120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current
Neutral Wire ConnectionRequired
Type
- Product Type
- Smart Sensor
