Documentation & Downloads

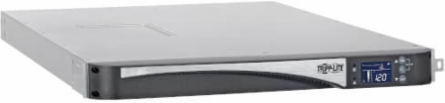

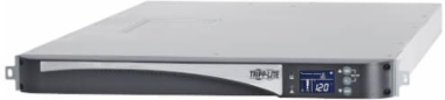

Tripp Lite SMART1500RT1U UPS, Line-Interactive, 1440VA, 1100W, 120V, Pure Sine Wave, 5 Outlets, 1U Rack/Tower
- MPN: SMART1500RT1U
- UPC: 037332239341
- PPN: TRP-SMART1500RT1U
CAD
$2269.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1440VA 1100W 120V Line-Interactive UPS - 5 NEMA 5-15R Outlets, Network Card Option, USB, DB9, 1U Rack/Tower
Features
- 1440VA 1100W 120V Line-Interactive UPS with 5 Outlets
- USB cable
- DB9 cable
- EPO/ROO connector
- Rack-mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Performance
- UPS Type
- Line-Interactive
- Nominal Voltage Details
- 120V sinusoidal in line mode and 120V sinusoidal in battery mode
- Frequency Compatibility Details
- Output regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal
- Output AC Waveform
- Pure Sine wave
- AC Mode Efficiency Rating
- 98%
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-95% non-condensing
- Audible Noise
- 40 dBA maximum, front side 1m
- Rated Input Current
- 11.3A (100V); 12A (120V); 10.8A (127V)
- Recommended Electrical Service
- 15A 120V
Output Capacity1440 VA (1080 VA @ 100VAC)
Frequency Compatibility50 / 60 Hz
Output Voltage RegulationFor 100V: 90-115VAC ±5%; For 120V: 102-139VAC ±5%; For 127V: 108-145VAC ±5%
Voltage Regulation DescriptionAutomatic voltage regulation (AVR) maintains line power operation with input voltage as low as 90 (±5%); input voltage range of 90 to 139
Battery Recharge Rate6 hours to 90%
Storage Temperature Range5° to 122°F (-15° to 50°C)
Operating Elevation0-3280 ft. (0-1000 m)
Input PhaseSingle-Phase
Input Circuit Breakers15A
Maximum Input Amps12A
Material
- UPS Housing Material
- Steel
- Battery Access
- Battery access panel
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
- Audible Alarm
- Audible alarm indicates power ON, power-failure, warnings, and low-battery conditions
- Network Management Cards
- WEBCARDLXE
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Replacement DescriptionHot-swappable, user replaceable batteries
SwitchesON button controls UPS ON, Cold-start, Self-test, and menu functions. OFF button controls unit off, fault clearance, and menu functions. Alarm/Enter button controls audible alarm state and menu confirmation
LED Indicators2 LEDs indicate AC output status (Green); UPS fault (Solid Red) / UPS abnormal conditions (Flashing Red)
Dimensions
- UPS Input Connection Type
- 5-15P
- Output Receptacles
- (5) 5-15R
- Primary Form Factor
- Rackmount; Tower
- Maximum Device Depth
- 21.8 in
- Unit Dimensions
- 1.730 x 17.320 x 21.810 in
- Communications Interface
- (1) EPO (emergency power off); (1) RS-232; (1) USB (HID enabled)
- Mounting Details

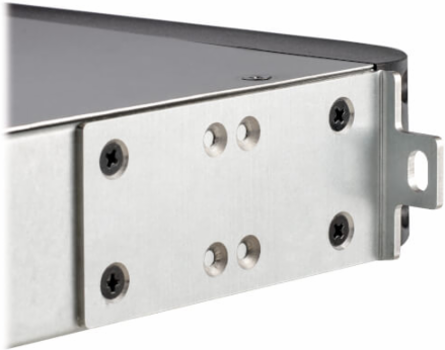

- Included mounting brackets provide front-rail installation in 2 or 4 post racks, plus upright tower configurations
UPS Input Cord Length6 ft
DC System Voltage36V
Cooling MethodFan
Minimum Required Rack Depth25 in
Unit Weight37.037 lb
Communications CableUSB and DB9 cabling included, EPO/ROO jack for Emergency and Remote Shutdown
Grounding DetailsBack panel grounding lug
Reference
- UPS Applications
- High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
- Extended Warranties
- 1-year and 2-year extensions available
Product Warranty Period2-year warranty, 3 year with registration. Registration required for 3-year warranty
