Tripp Lite SMART1500RMXLN SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, WEBCARDLX Network Interface, LCD

SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, WEBCARDLX Network Interface, LCD - https://media.province-electric.com/tripplite/2020q1/514d5de3f98d0c42938a0e1a98d7ad31d320153d-medium.png

SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, WEBCARDLX Network Interface, LCD

Tripp Lite SMART1500RMXLN SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, WEBCARDLX Network Interface, LCD

MPN: SMART1500RMXLN
UPC: 037332178022
PPN: TRP-SMART1500RMXLN

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3073.39/ EA

Qty:

Loading add to cart quantity...

Description

Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pre-installed WEBCARDLX network interface permits remote UPS management, including reboots.

Features

Corrects under- and overvoltages from 83V to 145V
8 NEMA 5-15R outlets—4 switchable via network interface
Pre-installed WEBCARDLX network interface
Expandable runtime with optional external battery packs
14 min. runtime at half load; 4.9 min. at full load
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance
Protects Mission-Critical Rack-Mounted Equipment
Reliable Battery Backup with Expandable Runtime
Pre-Installed WEBCARDLX Network Interface
Reduce Service Calls with Auto Probe Autonomous Device Management
8 NEMA 5-15R Outlets in 2 Load Banks
Automatic Voltage Regulation (AVR)
EMI/RFI Line Noise Filtering
Interactive LCD Screen
Communications Ports
Versatile Installation Options

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 570

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 4.9 min. (1350w)

Expandable Battery Runtime: Extended runtime supported via optional external battery packs

DC System Voltage (VDC): 36

Internal UPS Replacement Battery Cartridge: RBC93-2U

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)14 min. (675w)

External Battery Pack CompatibilityBP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27 -2US (multi-pack compatible)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90% (typical, full load discharge)

Battery AccessFront panel battery access door

Expandable RuntimeYes

Certifications

UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); ROHS (Restriction of Hazardous Substances)

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth with External Battery Pack (cm): 51

Minimum Required Rack Depth without External Battery Pack (cm): 42

Optional Mounting Accessory Notes: Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm): 342

Primary UPS Width (mm): 439

Shipping Dimensions (hwd / in.): 8.70 x 19.80 x 23.10

UPS Housing Material: Steel

UPS Power Module Weight (kg): 21.09

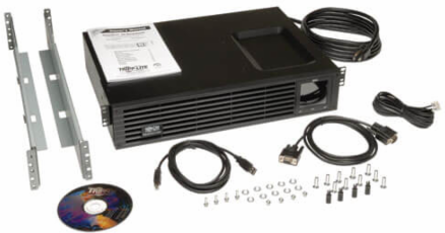

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Minimum Required Rack Depth with External Battery Pack (in.)19.95

Minimum Required Rack Depth without External Battery Pack (in.)16.45

Primary Form FactorRackmount

Primary UPS Height (mm)88

Rack Height2U

Shipping Weight (lbs.)56.30

UPS Power Module Dimensions (hwd, in.)3.45 x 17.3 x 13.45

UPS Power Module Weight (lbs.)46.5

User Interface, Alerts & Controls

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

LED Indicators: Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Undervoltage Correction: Input voltages between 95 and 108 are boosted by 12%

Overvoltage CorrectionInput voltages between 127 and 145 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 83 and 94 are boosted by 24%

Input

Rated input current (Maximum Load): 12A

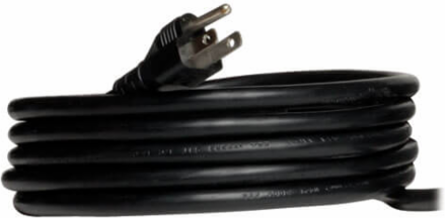

UPS Input Connection Type: 5-15P

UPS Input Cord Length (ft.): 10

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers15A

Recommended Electrical Service15A 120V

Output

Output Volt Amp Capacity (VA): 1500

Output Watt Capacity (Watts): 1350

Power Factor: 0.9

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (AC Mode): Sine wave

Output Capacity Details: Output is reduced to 1200 watts maximum when used with external battery packs

Output Receptacles: (8) 5-15R

Output kVA Capacity (kVA)1.5

Output kW Capacity (kW)1.35

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)-14%, +6%

Load Management ReceptaclesTwo switchable two-outlet 5-15R load banks

Output AC Waveform (Battery Mode)Pure Sine wave

Nominal Output Voltage(s) Supported110V; 115V; 120V

Individually Controllable Load BanksYes

Communications

Network Monitoring Port Description: Includes Pre-installed WEBCARDLX Network Management Card interface

Communications Cable: Micro-USB, USB and DB9 cabling included

EPO Port: RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems

Network UPS Tools Compatibility: NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications

SNMP CompatibilitySNMP V1, V2c, V3

Communications InterfaceDB9 Serial; EPO (emergency power off); Micro-USB; Pre-installed network card; RJ45 Network; Slot for SNMP/Web interface; USB (HID enabled); USB-A; USB-B

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 751

Audible Noise: 45 dBA maximum, front side 1m

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)237

AC Mode Efficiency Rating (100% Load)95%

Overview

UPC Code: 037332178022

UPS TypeLine-Interactive

Special Features

Grounding Lug: Back panel grounding lug

High Availability UPS Features: Hot swappable batteries

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Individually controllable load banks

Warranty

Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 4 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)

High Voltage Transfer to Battery Power (Setpoint): 145

Low Voltage Transfer to Battery Power (Setpoint)83
