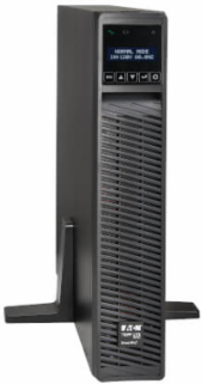

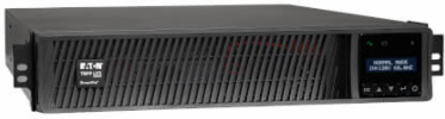

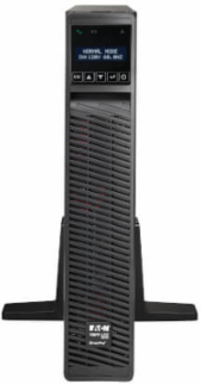

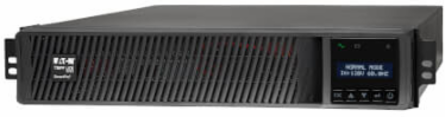

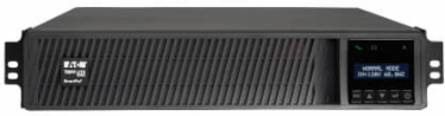

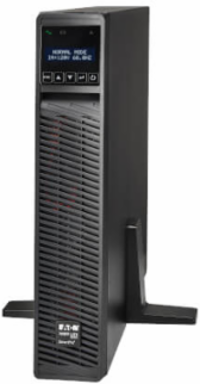

Tripp Lite SMART750RMXL2UN SmartPro 750VA 750W 120V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower
- MPN: SMART750RMXL2UN
- UPC: 037332256409
- PPN: TRP-SMART750RMXL2UN
CAD
$2505.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartPro 750VA 750W 120V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower
Features

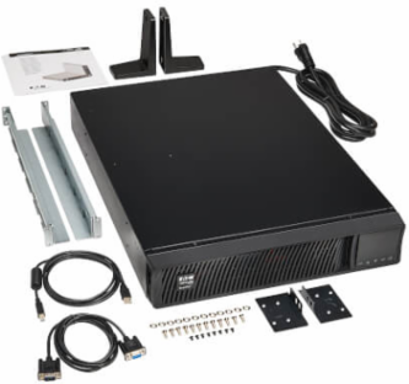

- 750VA 750W 120V Line-Interactive UPS
- WEBCARDLXE network management card
- USB cable
- DB9 cable
- Rack-mounting hardware
- Tower support stands
Documentation & Downloads
Specifications
Material
| UPS Housing Material | Steel |
|---|
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|
Dimensions
| UPS Input Connection Type | 5-15P |
|---|---|
| DC System Voltage | 48V |
| Minimum Required Rack Depth | 16.2 in |
| Primary UPS Height | 88 mm |
| UPS Power Module Dimensions | 3.45 x 17.35 x 13.15 in |
| Cooling Method | Fan |
| Network Management Cards | WEBCARDLXE |
| UPS Input Cord Length | 6 ft |
|---|---|
| Primary Form Factor | Rackmount |
| Primary UPS Depth | 334 mm |
| Primary UPS Width | 441 mm |
| Unit Dimensions | 3.450 x 17.200 x 17.600 in |

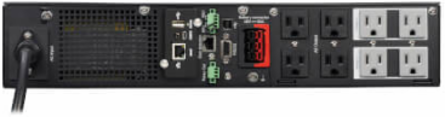

| Communications Interface | DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled) |
Performance
| UPS Type | Line-Interactive |
|---|---|
| Input Phase | Single-Phase |
| Recommended Electrical Service | 15A 120V |
| Nominal Voltage Details | 120V nominal output in battery mode |
| Output Voltage Regulation | 120V (-13%, +15%) |
| Output Receptacles | (8) 5-15R |
| Battery Recharge Rate | Less than 4.5 hours from 10% to 90% |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-95% non-condensing |
| Storage Elevation | 0-32,808 ft |
| Network Compatibility | 10 Mbps; 100 Mbps (Fast Ethernet) |
| Output Capacity | 750 VA/W |
|---|---|
| Rated Input Current | 7.5A |
| Maximum Input Amps | 8A |
| Frequency Compatibility | 50 / 60 Hz |
| Output AC Waveform | Sine wave |
| Expandable Runtime | Yes, via optional external battery packs |
| AC Mode Efficiency Rating | 95% |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Operating Elevation | 0-10000 ft. (0-3000 m) |
| Audible Noise | 45 dBA maximum, front side 1m |
| SNMP Compatibility | SNMP V1, V2c, V3 |
Reference
| Product Warranty Period | 2-year warranty, 3 year with registration (registration required for 3-year warranty) |
|---|
| UPS Applications | High-End Desktop/Small Network; Audio/Video; Home Network; Smart Home |
|---|
