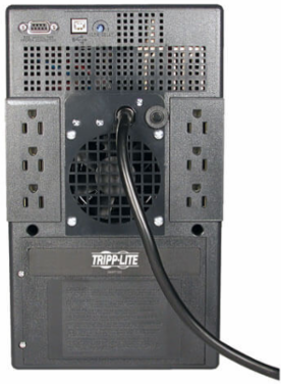

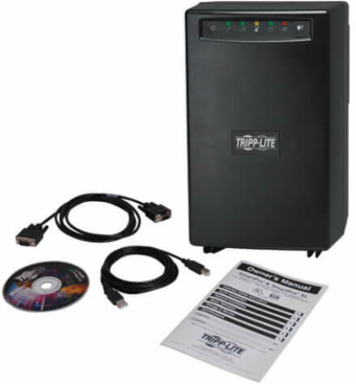

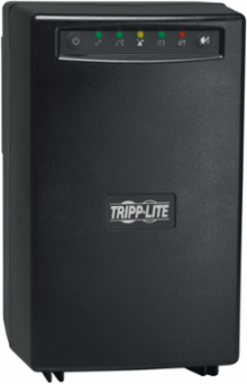

Tripp Lite SMART1500 SmartPro 120V 1.5kVA 980W Line-Interactive UPS, Tower, USB, DB9, 6 Outlets
Tripp Lite SMART1500 SmartPro 120V 1.5kVA 980W Line-Interactive UPS, Tower, USB, DB9, 6 Outlets
- MPN: SMART1500
- UPC: 037332115812
- PPN: TRP-SMART1500
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1476.44/ EA
Description
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Ideal solution for point-of-sale applications, VoIP systems and small business networks.
Features
- Corrects under- and overvoltages from 75V to 147V
- 6 NEMA 5-15R outlets—1 switchable via network interface
- Front-panel LEDs indicate load, power and battery statuses
- Monitoring of power conditions via PowerAlert®
- 20 min. runtime at half load; 7 min. at full load
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 510
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 7 min. (980w)
- DC System Voltage (VDC)
- 36
- Internal UPS Replacement Battery Cartridge
- RBC36-SLT
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)20 min. (490w)
Battery Recharge Rate (Included Batteries)Less than 4 hours from 10% to 90% (typical, full load discharge)
Battery AccessBattery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsUL1778 2ND Edition; CAN/CSA No.0-M1982, 0.4-M1982, 107.1-M91 and 601.1
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Optional Accessories
- Wallmount (UPSWM - tower mounting kit)
- Primary UPS Depth (mm)
- 235
- Primary UPS Width (mm)
- 191
- Shipping Weight (lbs.)
- 40.50
- UPS Power Module Dimensions (hwd, in.)
- 12.75 x 7.5 x 9.25
- UPS Power Module Weight (lbs.)
- 39
Installation Form Factors Supported with Included AccessoriesTower
Primary Form FactorTower
Primary UPS Height (mm)324
Shipping Dimensions (hwd / in.)17.10 x 11.10 x 13.00
UPS Housing MaterialPVC
UPS Power Module Weight (kg)17.69
User Interface, Alerts & Controls
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Audible Alarm
- Audible alarm indicates power-failure, overload and low-battery conditions
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
- Undervoltage Correction
- Input voltages between 93 and 107 are boosted by 14%
Overvoltage CorrectionInput voltages between 128 and 147 are reduced by 12%
Severe Undervoltage CorrectionInput voltages between 75 and 92 are boosted by 30%
Input
- Rated input current (Maximum Load)
- 12A
- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length (ft.)
- 7
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers15A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 980
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- Yes
Output kVA Capacity (kVA)1.5
Nominal Voltage Details120v nominal output in battery mode
Output Voltage Regulation (Line Mode)-18%, +8%
Load Management ReceptaclesOne switchable single-outlet 5-15R load bank
Output AC Waveform (Battery Mode)PWM sine wave
Output Receptacles(6) 5-15R
Communications
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Communications Cable
- USB and DB9 cabling included
- Communications Interface
- USB; DB9 Serial
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 456
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)139
AC Mode Efficiency Rating (100% Load)96%
Overview
- UPC Code
- 037332115812
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (Worldwide)
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 147
Low Voltage Transfer to Battery Power (Setpoint)75
