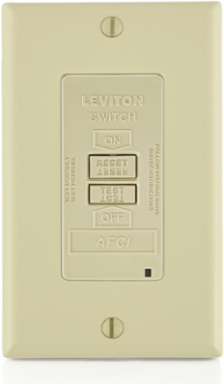

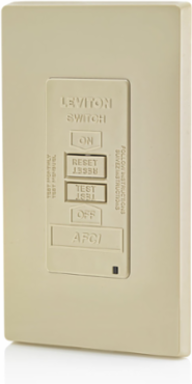

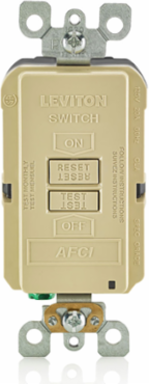

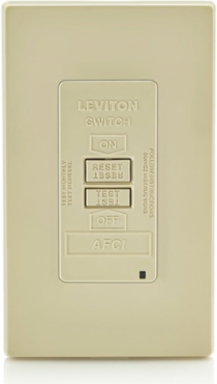

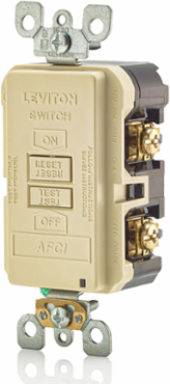

Leviton AFRBF-I 20 Amp Blank Face AFCI Receptacle, 125 Volt, Ivory, Self-Grounding
- MPN: AFRBF-I
- UPC: 078477622476
- PPN: LEV-AFRBF-I
CAD
$61.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SmartlockPro, AFCI, Blank Face Receptacle Outlet, Commercial Specification Grade, 20 Amp, 125 Volt, Back and Side Wire, 2-Pole, 3-Wire, Self-Grounding Clip Included - Ivory
Features
- Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- Device design reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Superior resistance to electrical surges and over-voltages
- Terminals allow for easy wiring options – back and side wire capable
- Compatible with all Decora® devices and wallplates; available in select colors
- Meets or exceeds UL requirements for tripping time on both series and parallel arcs
- The SmartlockPro® Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home’s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home’s electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCI’s are now required by the National Electrical Code® in many areas of the home.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Applicable Standards and Certifications
- UL|CSA|CSA C22.2 No. 270|UL 1699A
NEMAWD-1 and WD-6
Material Specifications
- Body
- Thermoplastic
- Grounding Screw
- #8 Galvanized Steel
- Mounting Strap
- Galvanized Steel
- TR Shutter
- Non-Tamper
- Terminal Screws
- #8 Plated Steel
FaceThermoplastic
Line ContactsBrass
Self-Grounding ClipYes
Terminal ClampsBrass
Mechanical Specifications
- Product ID
- Ratings are marked on device
- Torque Range
- 14-18 lbs.
TerminationBack and Side Wire
Wire Accomodation#10 - #14 AWG Copper, #10 - #12 Copper Clad
Product Features
- Brand
- SmartlockPro
- Device Type
- Blank Face Device
- Grade
- Residential/Commercial Specification Grade
- Product Type
- AFCI
ColorIvory
Feature(s)Indicator Light, Wallplate Included
NEMA ConfigurationBlank Face
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Operating Temperature
- Maximum Continuous 66°C, Minimum -35°C (w/o impact)
Electrical Specifications
- Amperage
- 20 A
- Grounding
- Self-Grounding
- Pole(s)
- 2
- Short Circuit Current Rating
- 10 kA
- Voltage
- 125 VAC
Dielectric Voltage1250 VAC
Horsepower Rating1 hp
Power Supply Input and Frequency125V, 60Hz
Temperature RiseMax 30°C
Wire(s)3
