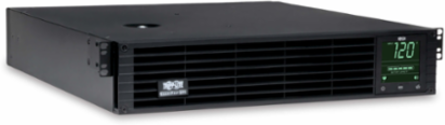

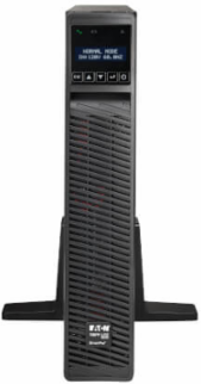

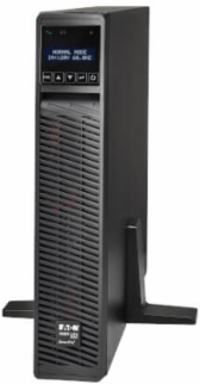

Tripp Lite SMART2200RM2U SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Network Card Options, LCD Display, USB, DB9

SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Network Card Options, LCD Display, USB, DB9 - https://media.province-electric.com/tripplite/2020q1/b704ccc3ad392b98d55b13920d3371e0e768fb49-medium.png

SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Network Card Options, LCD Display, USB, DB9

Tripp Lite SMART2200RM2U SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Network Card Options, LCD Display, USB, DB9

MPN: SMART2200RM2U
UPC: 037332150622
PPN: TRP-SMART2200RM2U

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2971.69/ EA

Qty:

Loading add to cart quantity...

Description

SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Network Card Options, LCD Display, USB, DB9

Features

2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
120V output, Corrects brownouts and overvoltages from 83V to 145V
0.9 Power Factor, Interactive LCD interface
96% line-mode efficiency, 2 switched load banks
USB, RS232, EPO and slot for Network Card options
120V NEMA 5-20P input, 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 570

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 4.5 min. (1920w)

DC System Voltage (VDC): 48

Internal UPS Replacement Battery Cartridge: RBC94-2U

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)12 min. (960w)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90% (typical, full load discharge)

Battery AccessFront panel battery access door

Expandable RuntimeNo

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

UPS Certification DetailsSAFETY STANDARD (U.S.) - UL1778:2014 (5th Ed) R10.17; SAFETY STANDARD (CANADA) - CAN/CSA-C22.2 No. 107.3-14 (3rd Ed) + GI1 / FCC/ICES COMPLIANT - CLASS A

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth (inches): 24.46

Primary Form Factor: Rackmount

Primary UPS Height (mm): 87

Rack Height: 2U

Shipping Weight (lbs.): 77.80

UPS Power Module Dimensions (hwd, in.): 3.43 x 17.32 x 19.46

UPS Power Module Weight (lbs.): 57.6

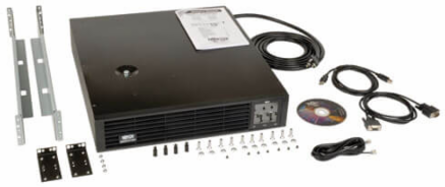

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

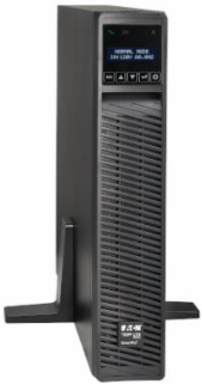

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Optional Mounting Accessory NotesOptional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm)494

Primary UPS Width (mm)440

Shipping Dimensions (hwd / in.)8.90 x 24.30 x 21.30

UPS Housing MaterialSteel

UPS Power Module Weight (kg)26.13

User Interface, Alerts & Controls

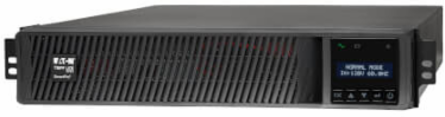

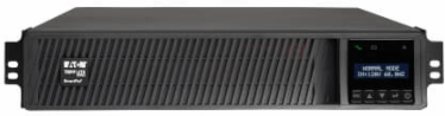

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%

Overvoltage CorrectionInput voltages between 127 and 145 are reduced by 12%

Severe Undervoltage CorrectionInput voltages between 83 and 95 are boosted by 24%

Input

Rated input current (Maximum Load): 16A (120V)

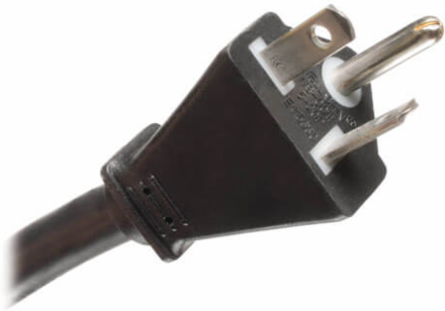

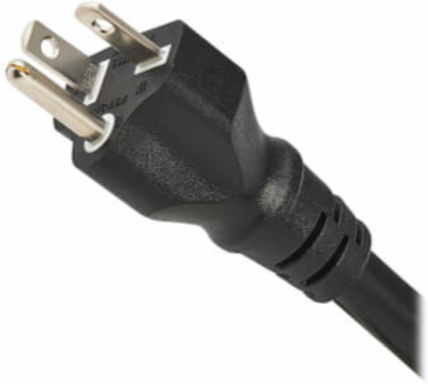

UPS Input Connection Type: 5-20P

UPS Input Cord Length (ft.): 10

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC

Input Circuit Breakers20A

Recommended Electrical Service20A 120V

Output

Output Volt Amp Capacity (VA): 2200

Output Watt Capacity (Watts): 1920

Power Factor: .87

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (AC Mode): Pure Sine wave

Nominal Output Voltage(s) Supported: 110V; 115V; 120V

Individually Controllable Load Banks: Yes

Output kVA Capacity (kVA)2.2

Output kW Capacity (kW)1.92

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)-14%, +6%

Load Management ReceptaclesTwo switchable single-outlet load banks

Output AC Waveform (Battery Mode)Pure Sine wave

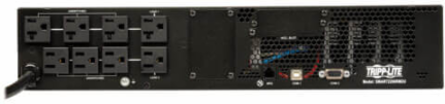

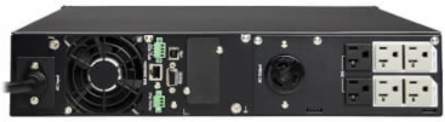

Output Receptacles(4) 5-15R; (4) 5-15/20R

Communications

Network Management Cards: SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD

PowerAlert Software: For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions

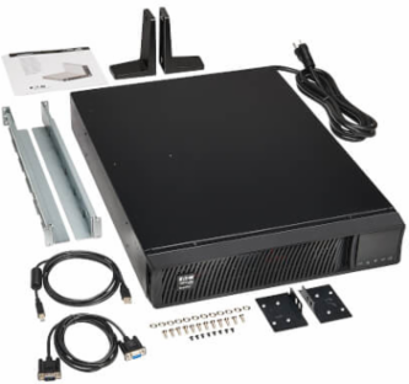

Communications CableUSB, DB9 and EPO cabling included

Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 1157

Audible Noise: 45 dBA maximum, front side 1m

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)306

AC Mode Efficiency Rating (100% Load)96%

Overview

UPC Code: 037332150622

UPS TypeLine-Interactive

Special Features

Grounding Lug: Back panel grounding lug

High Availability UPS Features: Hot swappable batteries

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Individually controllable load banks

Warranty

Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)

High Voltage Transfer to Battery Power (Setpoint): 145

Low Voltage Transfer to Battery Power (Setpoint)83
