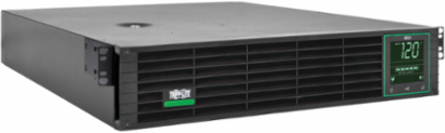

Tripp Lite SMART1500RM2UL SmartPro UPS, Lithium Battery Backup - 120V 1500VA / 1440W Line Interactive, 2U, Sine Wave, LCD
Tripp Lite SMART1500RM2UL SmartPro UPS, Lithium Battery Backup - 120V 1500VA / 1440W Line Interactive, 2U, Sine Wave, LCD
- MPN: SMART1500RM2UL
- UPC: 037332213587
- PPN: TRP-SMART1500RM2UL
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3458.31/ EA
Description
SmartPro UPS, Lithium Battery Backup - 120V 1500VA / 1440W Line Interactive, 2U, Sine Wave, LCD
Features
- LiFePO4 battery offers longer life, more cycles and faster recharge
- 97% line-mode efficiency saves energy and operating costs
- 8 NEMA 5-15R outlets—2 switchable via network interface

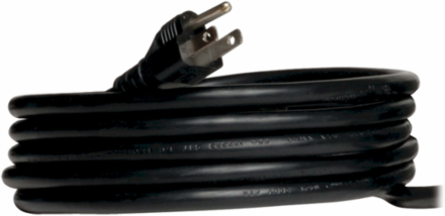

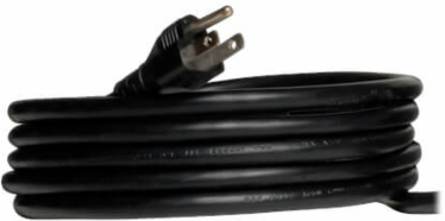

- 120V NEMA 5-15P input with 10 ft. power cord to connect to distant outlets
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
- 5-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Protects Rack-Mounted Equipment
- Superior LiFePO4 Battery Backup Compared to Lead Acid Battery
- Automatic Voltage Regulation (AVR) Conserves Battery Power
- EMI/RFI Line Noise Filtering Keeps Equipment Performing in Top Form
- Multi-Function LCD and Audible Alarms Keep You Informed
- Optional Network Management Cards
- Communications Ports
- Versatile Installation Options
- High Efficiency Operation
- Ultimate Lifetime Insurance and 5-Year Warranty
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 570
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 7.1 min. (1440w)
- DC System Voltage (VDC)
- 48
- Expandable Runtime
- No
Half Load Runtime (min.)15.4 min. (720w)
Battery Recharge Rate (Included Batteries)1.4 hours from 10% to 90% (typical, full load discharge)
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsUL 1778 5th Edition; CSA C22.2 No 107.3-14; FCC 15B CLASS A
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Minimum Required Rack Depth (inches)
- 22.46
- Primary Form Factor
- Rackmount
- Primary UPS Height (mm)
- 87
- Rack Height
- 2U
- Shipping Weight (lbs.)
- 32.63
- UPS Power Module Dimensions (hwd, in.)
- 3.43 x 17.32 x 19.46
- UPS Power Module Weight (lbs.)
- 21.12

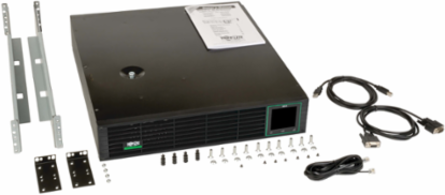

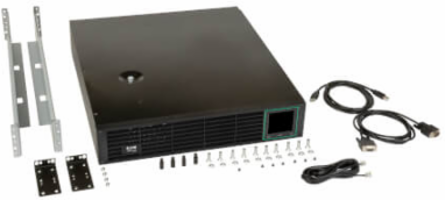

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Optional Mounting Accessory NotesOptional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
Primary UPS Depth (mm)494
Primary UPS Width (mm)440
Shipping Dimensions (hwd / in.)10.24 x 25.59 x 27.76
UPS Housing MaterialSteel
UPS Power Module Weight (kg)9.58
User Interface, Alerts & Controls

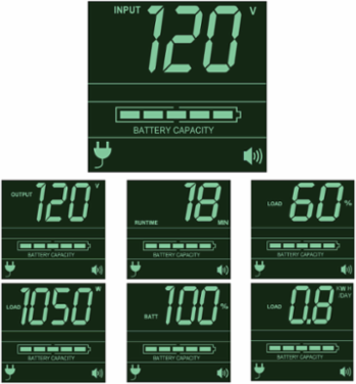

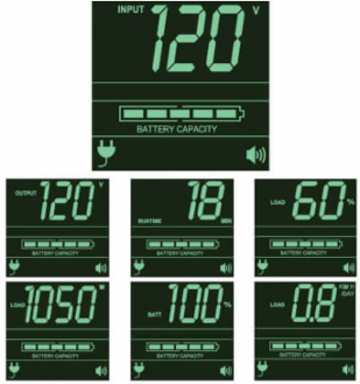

- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
- Undervoltage Correction
- Input voltages between 108 and 96 are boosted by 12%
Overvoltage CorrectionInput voltages between 127 and 145 are reduced by 12%
Severe Undervoltage CorrectionInput voltages between 83 and 95 are boosted by 24%
Input
- Rated input current (Maximum Load)
- 12A (120V)
- UPS Input Connection Type
- 5-15P
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)10
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 1440
- Power Factor
- 0.96
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Output AC Waveform (AC Mode)
- Pure Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- Yes
Output kVA Capacity (kVA)1.5
Output kW Capacity (kW)1.44
Nominal Voltage Details120v nominal output in battery mode
Output Voltage Regulation (Line Mode)-14%, +6%
Load Management ReceptaclesTwo switchable single-outlet load banks
Output AC Waveform (Battery Mode)Pure Sine wave

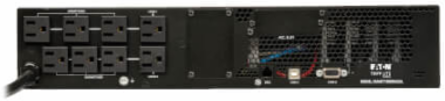

Output Receptacles(8) 5-15R
Communications
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD
- Communications Cable
- USB, DB9 and EPO cabling included
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Communications InterfaceUSB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- 97%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)130
Audible Noise50.4 dBA maximum, front side 1m
Overview
- UPC Code
- 037332213587
UPS TypeLine-Interactive
Special Features
- Grounding Lug
- Back panel grounding lug
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Warranty
- Product Warranty Period (Worldwide)
- 5-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)83
