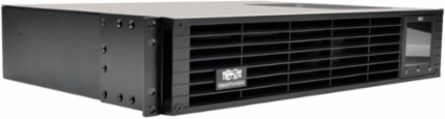

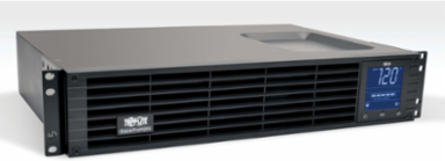

Tripp Lite SMC15002URM SmartPro 120V 1.5kVA 1kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, LCD, USB, DB9, 8 Outlets
Tripp Lite SMC15002URM SmartPro 120V 1.5kVA 1kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, LCD, USB, DB9, 8 Outlets
- MPN: SMC15002URM
- UPC: 037332186249
- PPN: TRP-SMC15002URM
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1771.77/ EA
Description
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pure sine wave output is compatible with active PFC power supplies.
Features
- Corrects under- and overvoltages from 83V to 147V
- 8 NEMA 5-15R outlets
- Monitoring of power conditions via POWERALERT12
- Interactive LCD monitoring screen
- 17.7 min. runtime at half load; 6.5 min. at full load
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 570
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 6.5 min. (1000w)
- DC System Voltage (VDC)
- 36
- Internal UPS Replacement Battery Cartridge
- RBC93-2U
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)17.7 min. (500w)
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90% (typical, full load discharge)
Battery AccessFront panel battery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 2 post 19 inch rackmount; 4 post 19 inch rackmount
- Minimum Required Rack Depth (inches)
- 16.45
- Primary Form Factor
- Rackmount
- Primary UPS Height (mm)
- 88
- Rack Height
- 2U
- Shipping Weight (lbs.)
- 52.80
- UPS Power Module Dimensions (hwd, in.)
- 3.45 x 17.3 x 13.45
- UPS Power Module Weight (lbs.)
- 46.5

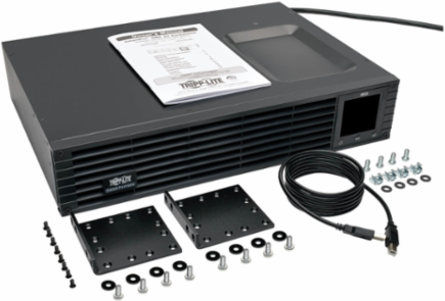

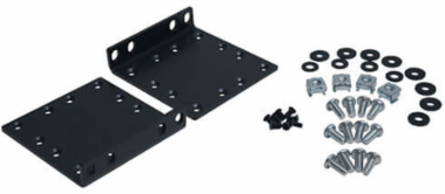

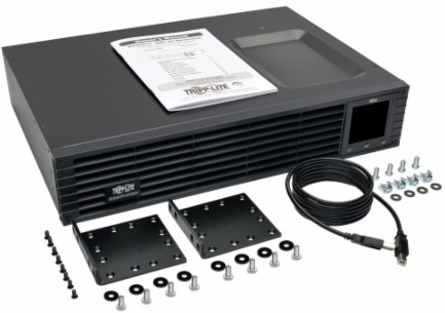

Included Mounting Accessory DescriptionIncludes UPSHDEARKIT for 2 point front-mount and 2 point center-mount rackmount installation in 2 and 4 post racks, plus wallmount installation; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT and 4POSTRAILKITWM
Installation Form Factors Supported with Optional Accessories4 post rackmount full-depth ( 4POSTRAILKIT ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Optional Mounting Accessory NotesOptional 2-9USTAND enables upright tower UPS placement; 4POSTRAILKIT enables installation in 4-post standard depth racks from 20.5 to 36 inches (521 to 914mm); 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm)
Primary UPS Depth (mm)342
Primary UPS Width (mm)439
Shipping Dimensions (hwd / in.)8.70 x 20.00 x 23.40
UPS Housing MaterialSteel
UPS Power Module Weight (kg)21.09
User Interface, Alerts & Controls

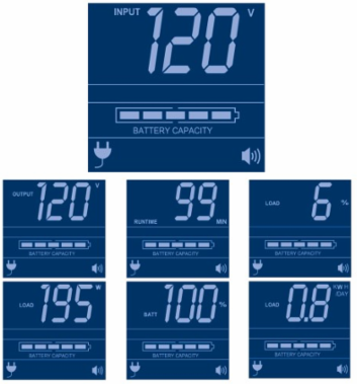

- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
- Undervoltage Correction
- Input voltages between 83 and 107 are boosted by 14%
Overvoltage CorrectionInput voltages between 128 and 147 are reduced by 12%
Input
- Rated input current (Maximum Load)
- 12A

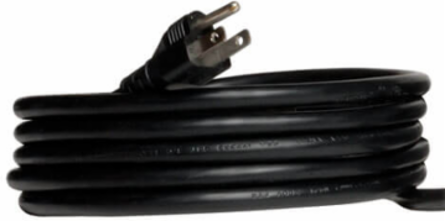

- UPS Input Connection Type
- 5-15P

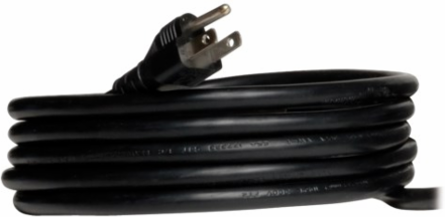

- UPS Input Cord Length (ft.)
- 10
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers15A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 1000
- Nominal Voltage Details
- 120v nominal output in battery mode
- Output Voltage Regulation (Line Mode)
- -21%, +8%
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- No
Output kVA Capacity (kVA)1.5
Output kW Capacity (kW)1.0
Frequency Compatibility60 Hz
Output Voltage Regulation (Battery Mode)+/- 5%
Output AC Waveform (Battery Mode)Pure Sine wave

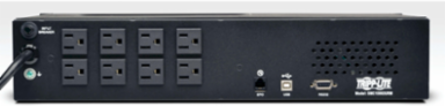

Output Receptacles(8) 5-15R
Communications
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Communications Cable
- USB cabling included
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Communications InterfaceDB9 Serial; EPO (emergency power off); USB
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 650
- Operating Elevation (ft.)
- 0-3000M (0-10,000 Ft)
- Operating Elevation (m)
- 0 - 3000 m
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)223
AC Mode Efficiency Rating (100% Load)94%
Audible Noise45 dBA maximum, front side 1m
Overview
- UPC Code
- 037332186249
UPS TypeLine-Interactive
Special Features
- Grounding Lug
- Back panel grounding lug
- High Availability UPS Features
- Hot swappable batteries
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Warranty
- Product Warranty Period (Worldwide)
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 5 milliseconds (AC to battery), 1 milliseconds (Battery to AC)
- High Voltage Transfer to Battery Power (Setpoint)
- 147
Low Voltage Transfer to Battery Power (Setpoint)83
